| Product Specs | |
|---|---|
| Model: | 7800 (AERO) | Range: | SYSTEM PRESSURE: Up to 2000 PSI (138 BAR), Optional 10K PSI (689 BAR) TEMP RANGES:-100°F to +250°F (-73° to + 155°C) | Warranty: | Product Warranty |

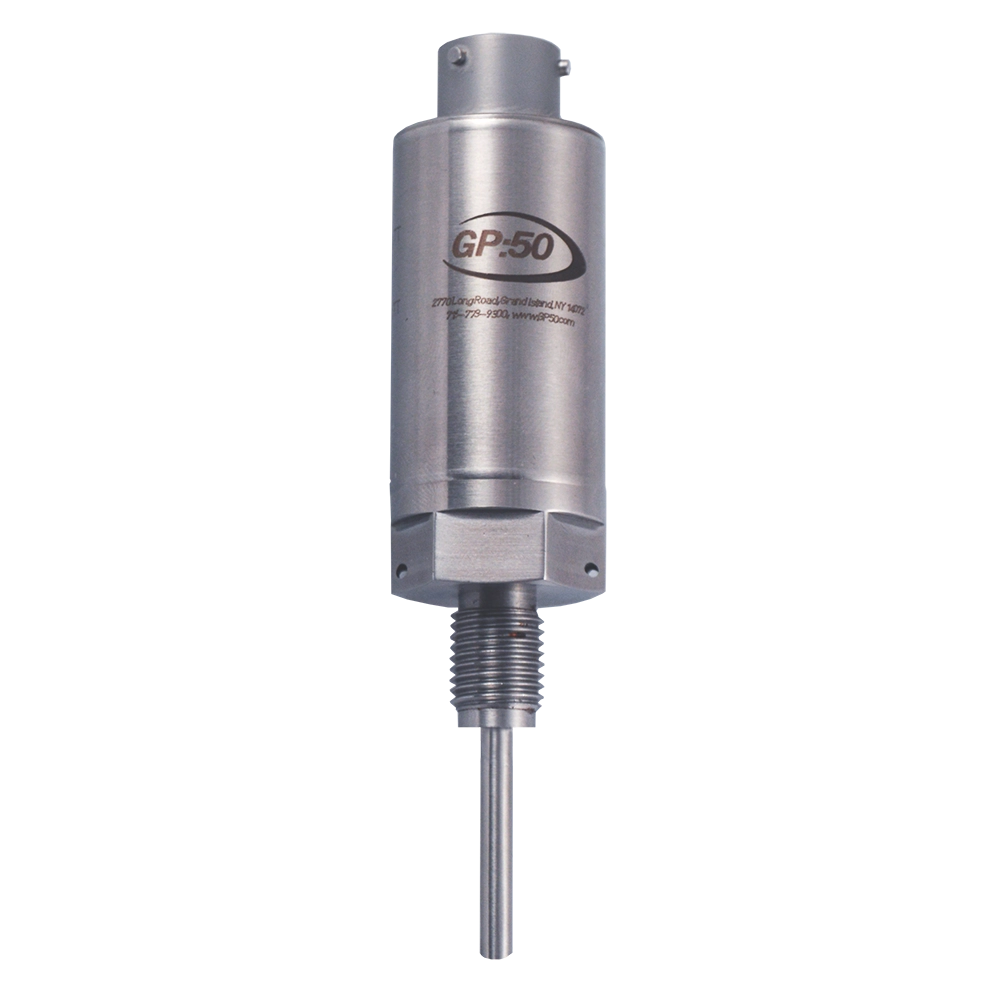

Model 7800 Aerospace Grade Temperature Transducer from GP:50 provides reliable temperature measurement from -100 °F to +500 °F (-73 °C to +260 °C) while withstanding the harsh conditions associated with space exploration. The compact size and rugged design are an excellent choice for on-board space flight or military vehicle applications.
GP:50’s 7800 series temperature transducer provides reliable temperature measurement from -100 °F to +500 °F (-73 °C to +260 °C) while withstanding the harsh conditions associated with space exploration. The compact size and rugged design are an excellent choice for on-board space
flight or military vehicle applications.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 7790 (AERO) |
| Range: | 0 to 300 thru 0 to 15K PSIA, PSIG, or PSISG Options (20 thru 1,034 BAR) |
| Warranty: | Product Warranty |
Model 7790 High Temperature Pressure and Temperature transducer series from GP:50 provides pressure and temperature measurement up to +350 °F (+177 °C). The remote electronics provides a high level output of 4-20 mA or 0 to 5 Vdc while reducing the overall footprint by integrating pressure and temperature measurement in one device.
Learn More
| Model: | 7720 (AERO) |
| Range: | Ranges 0 to 300 thru 0 to 6K PSI or PSISG (20 thru 413 BAR) |
| Warranty: | Product Warranty |
Model 7720 cryogenic pressure transducer from GP:50 offers consistent measurement accuracy in temperatures as low as -320 °F (-196 °C). The Series features a lightweight, all stainless steel construction with choice of either 4-20 mA, 0 to 5 Vdc, or 0 to 10 Vdc output; or optional digital protocols. Onboard isolated transducer electronics are remotely mounted via stainless steel armor jacketed flex tubing. The high-reliability of the Model 7720 Series has been successfully field-proven over 25 years and hundreds of critical applications.
Learn More
| Model: | 7201 |
| Range: | 0 to 50 thru 0 to 15K PSIA (3.4 thru 1,034 BAR) |
| Warranty: | Product Warranty |
The Model 7201 from GP:50 is a high-accuracy, low-noise, flight-heritage pressure transducer, designed to provide high-reliability within
demanding aerospace environments. Its flight heritage, spanning 25 years, makes it ideal for use within demanding aerospace and defense applications, including those in which higher shock and vibration levels may be present.
Learn More
| Model: | 241/341 (AERO) |
| Range: | 0-30” WC thru 8K PSI (552 BAR) *Gauge, Vacuum, Absolute, Sealed Gauge (Both Hermetic & Non-Hermetic) |
| Warranty: | Product Warranty |
Model 241/341 high accuracy pressure transducer from GP:50 is our most accurate pressure transducer. Designed specifically for aerospace and automotive test stand applications, it is 5x tighter through temperature than standard industrial transmitters with a 0.20% FSO / 100 °F thermal stability. More than 25 years of field expertise went into the design of our pressure transducer for exceptional reliability. The compact, corrosion-resistant, all-welded stainless steel design of the Model 241/341 offers ease of installation within space constrained environments. Static accuracy is available to ±0.05% FSO, with a total thermal error of 0.25% FSO over the compensated temperature range.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
