Model 7770 | Extreme High-Temperature Transmitter

Download Datasheet Request Quote
Product Specs
Model: 7770
Range: SYSTEM PRESSURE: Up to 2000 PSI (138 BAR), Optional 10K PSI (689 BAR) TEMP RANGES: +70°F to +500°F (+20°C to +260°C)
Warranty: Product Warranty

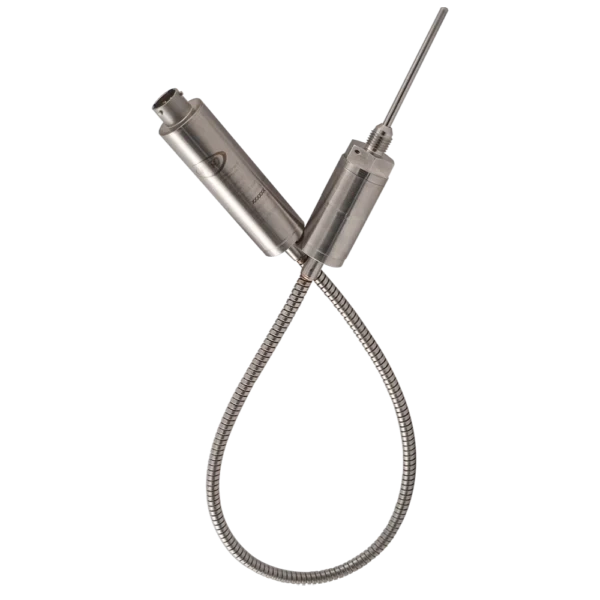

The Model 7770 Series from GP:50 is a family of extreme high-temperature transducers, offering consistent measurement accuracy in temperatures up to +500 °F (+260 °C). Their lightweight, all stainless steel construction incorporates on-board isolated electronics, which are remotely mounted
via stainless steel armor jacketed flex tubing. The onboard electronics are designed to offer a highlevel 4-20 mA, 0 to 5 Vdc, or 0 to 10 Vdc output.
Direct transducer mounting can also provide greater process media measurement accuracy. The highreliability of the Model 7770 Series has been fieldproven over 25 years and hundreds of applications.

Categories: , , Tags: , , , , , ,

Description

The Model 7770 Series from GP:50 is a family of extreme high-temperature transducers, offering consistent measurement accuracy in temperatures up to +500 °F (+260 °C). Their lightweight, all stainless steel construction incorporates on-board isolated electronics, which are remotely mounted
via stainless steel armor jacketed flex tubing. The onboard electronics are designed to offer a highlevel 4-20 mA, 0 to 5 Vdc, or 0 to 10 Vdc output.
Direct transducer mounting can also provide greater process media measurement accuracy. The highreliability of the Model 7770 Series has been fieldproven over 25 years and hundreds of applications.

Additional information

Markets

Pressure Ranges
