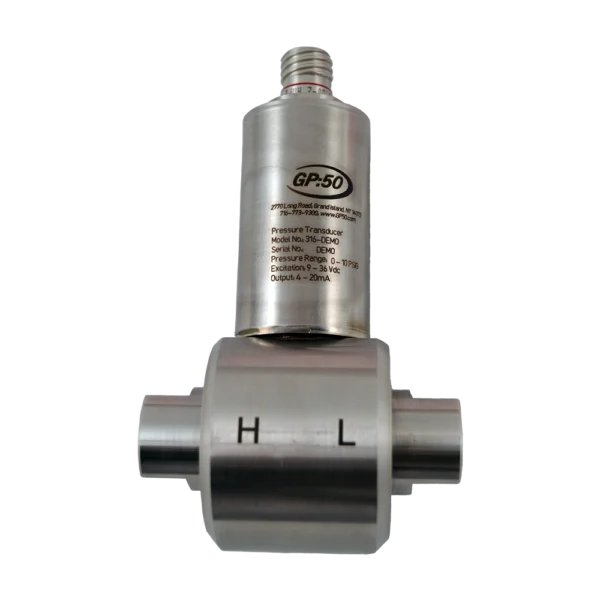

Model 216/316 | Low Range High Line Differential Pressure Transducer

Product Specs
Model: 216/316 (Differential Pressure)
Range: 2.5” WCD thru 200 PSID *Alternate Ranges Available
Warranty: Product Warranty

Model 216/316 low range high line differential pressure transducers from GP:50 feature a compact design which incorporates the company’s own digital correction circuit technology for high accuracy and extended service life across a variety of applications.

Description

Model 216/316 low range high line differential pressure transducers from GP:50 feature a compact design which incorporates the company’s own digital correction circuit technology for high accuracy and extended service life across a variety of applications.

The GP:50 Model 216/316 Series is available in pressure ranges from 2.5” WCD thru 200 PSID (14 BAR), with line pressure options up to 5000 PSI (345 BAR). The Model 216 is offered with choice of either 0-5 VDC or 0-10 VDC output, while the Model 316 is a loop-powered (4-20 mA) unit. They are available with choice of unidirectional or bidirectional output, as well as with an improved accuracy specification of up to ±0.05% FSO.

The wet-to-wet design of the GP:50 Model 216/316 low range high line differential pressure transducer series incorporates the company’s own proprietary digital correction circuitry, along with all-welded, corrosion-resistant 316L stainless steel wetted parts and housings. These features result in the creation of a high-accuracy differential pressure transducer with very fast response time.

With its high accuracy and exceptional performance characteristics, the GP:50 Model 216/316 low range high line differential pressure transducers series is ideal for automotive and aerospace test stands; pressure decay for leak testing; emissions and energy management; HVAC; and in-laboratory R&D.
