| Product Specs | |
|---|---|
| Model: | 7730 | Range: | 0 to 300 thru 0 to 6K PSIA or PSIS options (21 thru 413 BAR) (Consult factory for ranges <300 or >6,000 PSIA, PSIS) | Warranty: | Product Warranty |

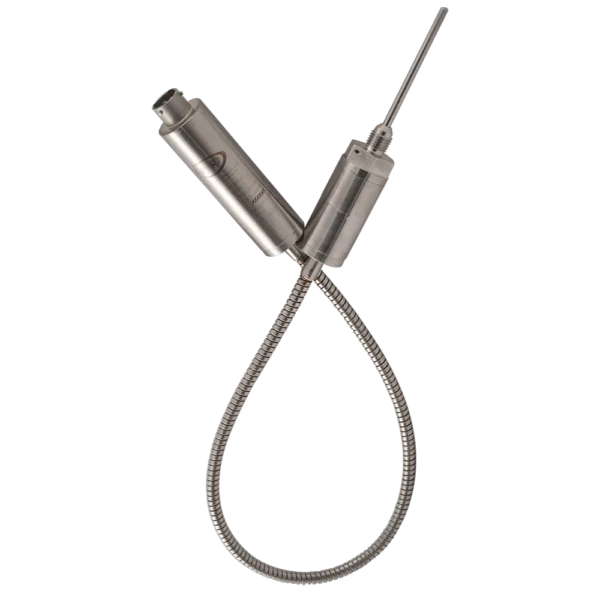

GP:50’s 7730 cryogenic series provides pressure and temperature measurement in one device down to -320 °F (-196 °C). The remote mounted
electronics offers a high level output of 4-20 mA, 0 to 5 Vdc or various digital protocols at high accuracies. 100 or 1,000 Ω platinum RTD is available as well as dual analog outputs.
GP:50’s 7730 cryogenic series provides pressure and temperature measurement in one device down to -320 °F (-196 °C). The remote mounted
electronics offers a high level output of 4-20 mA, 0 to 5 Vdc or various digital protocols at high accuracies. 100 or 1,000 Ω platinum RTD is available as well as dual analog outputs.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 7202 |
| Range: | 0 to 1000 thru 0 to 15K PSIA, PSIG, PSIV, PSISG (0-69 thru 0-1034 BAR) *Other Ranges Available |
| Warranty: | Product Warranty |
The Model 7202 is one of the smallest and light weight aerospace designs GP:50 offers. It provides very high accuracy and improved thermal performance. The 7202 will withstand some of the most severe aerospace or military applications, including higher shock and vibration environments.
Learn More
| Model: | 241/341 |
| Range: | 0-30” WC thru 8K PSI (552 BAR) *Gauge, Vacuum, Absolute, Sealed Gauge (Both Hermetic & Non-Hermetic) |
| Warranty: | Product Warranty |
Model 241/341 from GP:50 is our most accurate pressure transducer. Designed specifically for aerospace and automotive test stand applications, it is 5x tighter through temperature than standard industrial transmitters with a 0.20% FSO / 100 °F thermal stability. More than 25 years of field expertise went into the design of our pressure transducer for exceptional reliability. The compact, corrosion-resistant, all-welded stainless steel design of the Model 241/341 offers ease of installation within space constrained environments. Static accuracy is available to ±0.05% FSO, with a total thermal error of 0.25% FSO over the compensated temperature range.
Learn More
| Model: | 7780 |
| Range: | 0 to 150 thru 0 to 15K *PSIA, PSIG, or PSISG Options (10 thru 1,034 BAR) |
| Warranty: | Product Warranty |
The Model 7780 Series from GP:50 is a family of high-temperature pressure transducers, offering consistent measurement accuracy in temperatures
up to +350 °F (+177 °C). The Series features a lightweight, all stainless steel construction with choice of either 4-20 mA, 0 to 5 Vdc, or 0 to 10 Vdc output; or optional digital protocols. Onboard isolated transducer electronics are remotely mounted via stainless steel armor jacketed flex
tubing. The high-reliability of the Model 7780 Series is field-proven over 25 years and hundreds of applications, including higher shock and vibration environments.
| Model: | 7400 |
| Range: | 0 to 30 thru 0 to 7,500 PSID (2 thru 517 BAR) *Bi-directional or Uni-directional |
| Warranty: | Product Warranty |
The Model 7400 from GP:50 is a high-line, high-pressure, aerospace grade differential pressure transducer. Its true wet-wet all stainless steel design allows it to effectively measure both corrosive fluid and industrial gas pressures to high degrees of accuracy and repeatability.
Its optional 10X proof pressure and 10K PSI (689 BAR) line rating also facilitates its use within demanding aircraft engine and hydraulic systems. In addition to expanded ranges, a variety of pressure ports, electrical connections, outputs, and wetted part materials are available. Please consult the factory
for details.
