| Product Specs | |
|---|---|
| Model: | 8300 (AERO) | Range: | 0 to 1 thru 0 to 500 PSID (0.07 Bar thru 34.5 BAR) Bi-directional or uni-directional | Warranty: | Product Warranty |

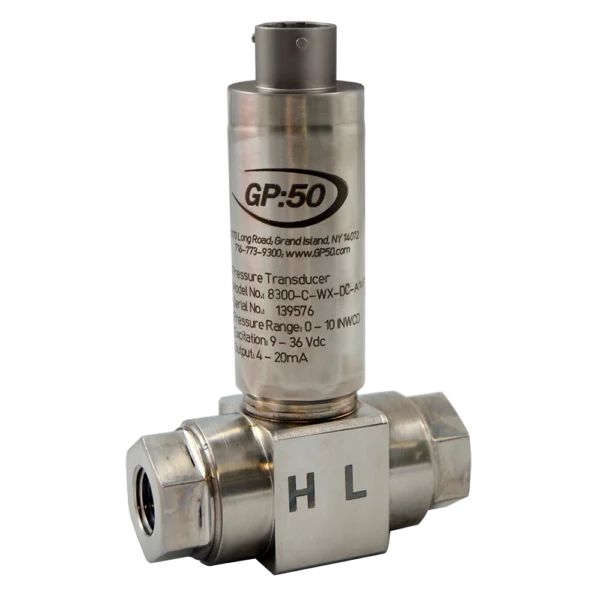

Model 8300 Flight Heritage Digitally Corrected Differential Pressure Transducer series from GP:50 provides high reliability with high accuracy. The compact, proprietary sensor design provides years of reliable measurement required for commercial aviation, military, aerospace, UAV, satellite, and defense applications.
Model 8300 Flight Heritage Digitally Corrected Differential Pressure Transducer series from GP:50 provides high reliability with high accuracy. The compact, proprietary sensor design provides years of reliable measurement required for commercial aviation, military, aerospace, UAV, satellite, and defense applications.
| Markets | |
|---|---|
| Pressure Ranges |
You must be logged in to post a review.
| Model: | 7200 (AERO) |
| Range: | 0-1 PSIG, 0-3 PSIA thru 0-15K PSI options (69 mBAR thru 1,034.2 BAR) |
| Warranty: | Product Warranty |
Model 7200 Flight Heritage Pressure Transducer series from GP:50 is a flight heritage static pressure transducer, designed to provide high-accuracy pressure measurements within commercial aviation, military, aerospace, UAV, satellite, and defense applications. This highly rugged and highly reliable Model 7200 is field proven over 25 years and hundreds of applications, including higher shock and vibration environments, and is available in both test and program volumes to suit a variety of requirements.
Learn More
| Model: | 115/215/315 (Differential Pressure) |
| Range: | 30 PSID (2 BAR D) to 7,500 PSID (317 BAR D) |
| Certification: | Optional FM & CSA Explosion-Proof Approval Optional FM, CSA, or ATEX Intrinsically Safe Approval |
| Warranty: | Product Warranty |
Model 115/215/315 High Range Differential Pressure Transducer from GP:50 is a family of compact, high-range differential pressure transducers. Series units are offered in ranges as low as 0 to 30 PSID (0 to 2 BAR D), with a line pressure range to 10K PSI (690 BAR). Their all-welded, corrosion-resistant, 316L stainless steel construction is without seals or o-rings, helping to ensure their continued reliability within demanding environments. Optional FM, CSA, ATEX intrinsic safety approvals are also available.
Learn More
| Model: | 114/214/314 (Differential Pressure) |
| Range: | 500 PSID to 20K PSID (25 BAR D to 1,379 BAR D) |
| Warranty: | Product Warranty |
Model 114/214/314 Ultra High Range Differential Pressure Transducer series from GP:50 offers +0.50% (BFSL) static accuracy over its standard ranges of 500 to 20K PSID (35 to 1,379 BAR D). Improved accuracy is available to +0.20%. Their rugged, compact design incorporates a unique, non-filled strain gauge sensing technology. These attributes allow the Model 114/214/314 to effectively support high-cycle pressure measurement requirements, even in space constrained environments. An all stainless steel construction, without seals or o-rings, provides high-corrosion resistance. Optional intrinsically safe versions are also available for extreme applications.
Learn More
| Model: | 188/288/388 (Industrial) |
| Range: | 300 PSI to 20K PSI (21 to 1,379 BAR) *Consult Factory For Other Ranges |
| Warranty: | Product Warranty |
Model 188/288/388 Miniature Flush Diaphragm Pressure Transducer from GP:50 is a family of all welded stainless steel miniature flush diaphragm pressure transducers. Their unique design incorporates a specialty flush process connection. This allows the transducer to effectively support higher viscosity fluid pressure measurements without port clogging or plugging. Their compact size allows for ease of installation within space constrained environments.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
