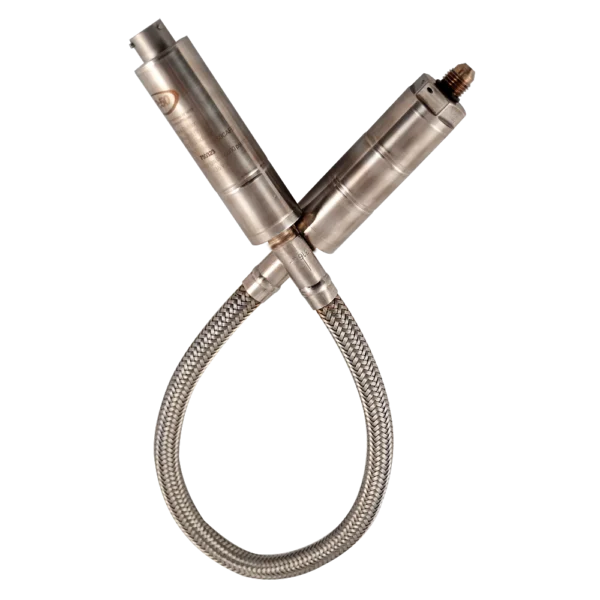

Model 7720 | Cryogenic Pressure Transducer

Download Datasheet Request Quote
Product Specs
Model: 7720 (AERO)
Range: Ranges 0 to 300 thru 0 to 6K PSI or PSISG (20 thru 413 BAR)
Warranty: Product Warranty

Model 7720 cryogenic pressure transducer from GP:50 offers consistent measurement accuracy in temperatures as low as -320 °F (-196 °C). The Series features a lightweight, all stainless steel construction with choice of either 4-20 mA, 0 to 5 Vdc, or 0 to 10 Vdc output; or optional digital protocols. Onboard isolated transducer electronics are remotely mounted via stainless steel armor jacketed flex tubing. The high-reliability of the Model 7720 Series has been successfully field-proven over 25 years and hundreds of critical applications.

Categories: , , Tags: , , , , , , , , , , , , ,

Description

Model 7720 cryogenic pressure transducer from GP:50 offers consistent measurement accuracy in temperatures as low as -320 °F (-196 °C). The Series features a lightweight, all stainless steel construction with choice of either 4-20 mA, 0 to 5 Vdc, or 0 to 10 Vdc output; or optional digital protocols. Onboard isolated transducer electronics are remotely mounted via stainless steel armor jacketed flex tubing. The high-reliability of the Model 7720 Series has been successfully field-proven over 25 years and hundreds of critical applications.

Additional information

Markets

Pressure Ranges
