| Product Specs | |
|---|---|
| Model: | 7880 (AERO) | Range: | 15 thru 0 to 15K PSIA, PSIG, or PSISG Options (1 thru 1,034 BAR) | Warranty: | Product Warranty |

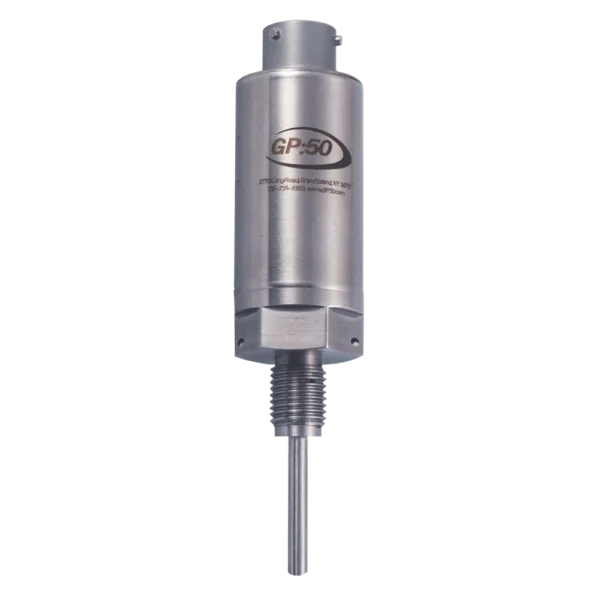

Model 7880 Dual Pressure Temperature Transducer aerospace grade pressure and temperature transducer provides reliable measurements from -65 °F to +250 °F (-59 °C to +121 °C) while withstanding the harsh conditions associated with space exploration. The compact size and rugged design are an excellent choice for on-board space flight or military vehicle applications where space and weight constraints are critical.
Model 7880 Dual Pressure Temperature Transducer aerospace grade pressure and temperature transducer provides reliable measurements from -65 °F to +250 °F (-59 °C to +121 °C) while withstanding the harsh conditions associated with space exploration. The compact size and rugged design are an excellent choice for on-board space flight or military vehicle applications where space and weight constraints are critical.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 188/288/388 (Industrial) |
| Range: | 300 PSI to 20K PSI (21 to 1,379 BAR) *Consult Factory For Other Ranges |
| Warranty: | Product Warranty |
Model 188/288/388 Miniature Flush Diaphragm Pressure Transducer from GP:50 is a family of all welded stainless steel miniature flush diaphragm pressure transducers. Their unique design incorporates a specialty flush process connection. This allows the transducer to effectively support higher viscosity fluid pressure measurements without port clogging or plugging. Their compact size allows for ease of installation within space constrained environments.
Learn More
| Model: | 136/236/336 (Differential Pressure) |
| Range: | 1 PSID thru 500 PSID (0.1 thru 25 BAR D) *Other Ranges Available |
| Warranty: | Product Warranty |
Model 136/236/336 Compact High-Accuracy Differential Pressure Transducer from GP:50 is a family of highly accurate, digitally compensated differential pressure transducers. Model 136/236/336 measures differential pressure ranges as low as 20” WCD and line pressures up to 1000 PSID (69 BAR) in a compact size. Customers may also choose from among multiple accuracy, digital output, process and electrical connections. Please consult the factory for details.
Learn More
| Model: | 7850 (AERO) |
| Range: | SYSTEM PRESSURE: Up to 2000 PSI (138 BAR) (Optional 0-10,000 PSI available) TEMP RANGES:-100°F to +392°F (-73°C to +200°C) |
| Warranty: | Product Warranty |
Model 7850 Subsea Temperature Transducer from GP:50 is a rugged,
sub-sea temperature transducer, tested to 30,000 FT sea water. The highly corrosion resistant design meets the tough environmental challenges of offshore oil and gas, Naval and ROV applications.
| Model: | 7450 (AERO) |
| Range: | 2.5" WCD thru 100 PSID |
| Warranty: | Product Warranty |
Model 7450 High Line – Low Range Aerospace Differential Pressure Transducer is available with static line pressure to 5,000 PSI. Differential ranges as low as 0-2.5” WCD and a 500 PSI proof pressure are standard on all ranges. A custom subsea rated design allows operation to 23,000 FT SW.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
