| Product Specs | |
|---|---|
| Model: | 188/288/388 (Industrial) | Range: | 300 PSI to 20K PSI (21 to 1,379 BAR) *Consult Factory For Other Ranges | Warranty: | Product Warranty |

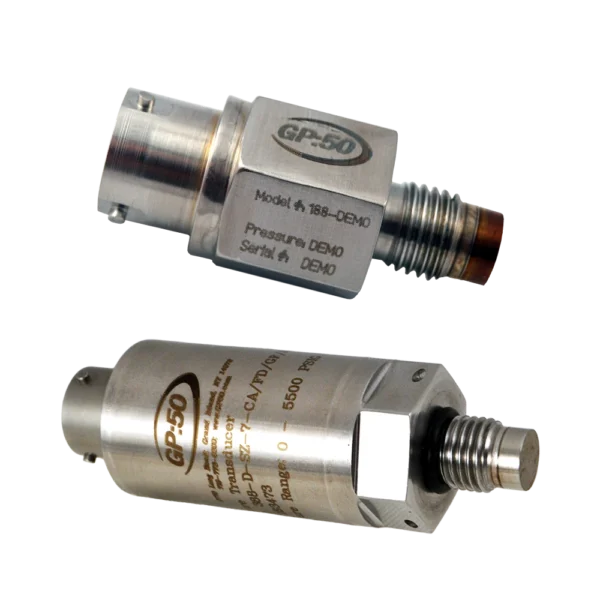

Model 188/288/388 Miniature Flush Diaphragm Pressure Transducer from GP:50 is a family of all welded stainless steel miniature flush diaphragm pressure transducers. Their unique design incorporates a specialty flush process connection. This allows the transducer to effectively support higher viscosity fluid pressure measurements without port clogging or plugging. Their compact size allows for ease of installation within space constrained environments.
Model 188/288/388 Miniature Flush Diaphragm Pressure Transducer from GP:50 is a family of all welded stainless steel miniature flush diaphragm pressure transducers. Their unique design incorporates a specialty flush process connection. This allows the transducer to effectively support higher viscosity fluid pressure measurements without port clogging or plugging. Their compact size allows for ease of installation within space constrained environments.
| Markets | Aerospace, Automotive, Industrial Automation, Oil & Gas, Testing |
|---|---|
| Pressure Ranges |
| Model: | 111, 211, 311 (Industrial) |
| Range: | 0 to 30" WC thru 0 to 15K PSI (0 to 1,034 BAR) *PSIG, PSIS, PSIA, PSIV & Compound Ranges Available |
| Warranty: | Product Warranty |
Model 111/211/311 Industrial Grade Pressure Transducer from GP:50 strain gauge-based sensors are expressly designed to withstand the shock, vibration and pressure spikes common to most hydraulic and pneumatic control systems.
The highly rugged, all-welded stainless steel design of the Model 111/211/311 offers high corrosion resistance, making the sensors an ideal choice for demanding oil & gas, steelworks, rolling mills and process control applications. Units are further available with optional 10X proof pressure for extended worry-free service life within challenging environments.
Learn More
| Model: | 7500 (AERO) |
| Range: | 0 to 50 thru 0 to 20K PSI (3.4 thru 1,379 BAR) |
| Warranty: | Product Warranty |
Model 7500 subsea pressure level transducer from GP:50 is a rugged, sub-sea rated pressure transducer, tested to 30,000 FT sea water. The highly corrosion resistant design meets the tough environmental challenges of offshore oil and gas, Naval and ROV applications. The high reliability of the Model 7500 is field proven over 25 years and hundreds of applications, including higher shock and vibration environments.
Learn More
| Model: | 115/215/315 (Differential Pressure) |
| Range: | 30 PSID (2 BAR D) to 7,500 PSID (317 BAR D) |
| Certification: | Optional FM & CSA Explosion-Proof Approval Optional FM, CSA, or ATEX Intrinsically Safe Approval |
| Warranty: | Product Warranty |
Model 115/215/315 High Range Differential Pressure Transducer from GP:50 is a family of compact, high-range differential pressure transducers. Series units are offered in ranges as low as 0 to 30 PSID (0 to 2 BAR D), with a line pressure range to 10K PSI (690 BAR). Their all-welded, corrosion-resistant, 316L stainless steel construction is without seals or o-rings, helping to ensure their continued reliability within demanding environments. Optional FM, CSA, ATEX intrinsic safety approvals are also available.
Learn More| Model: | 170/270/370 (Oil & Gas) |
| Range: | 0 to 1,000 PSI thru 0 to 20K PSI (69 thru 1,379 BAR) |
| Certification: | FM/CSA/ATEX/IEC CE Marked |
| Warranty: | Product Warranty |
Model 170/270/370 WECO® Hammer Union Pressure Transmitter from GP:50 is ruggedly designed and engineered to effectively address demanding shock and vibration and installation challenges within the oilfield environment. Units are directly compatible with WECO® 2”-1502, 2202, 2002 or 602 wing union fittings. They are also available in multiple outputs, ranges, electrical connections, and area approvals to meet specific requirements.
