Model 7780 High Temperature Pressure Transducer

Model 7780 | High Temperature Pressure Transducer

Download Datasheet Request Quote
Product Specs
Model: 7780 (AERO)
Range: 0 to 300 thru 0 to 15K *PSIA, PSIG, or PSISG Options (20 thru 1,034 BAR)
Warranty: Product Warranty

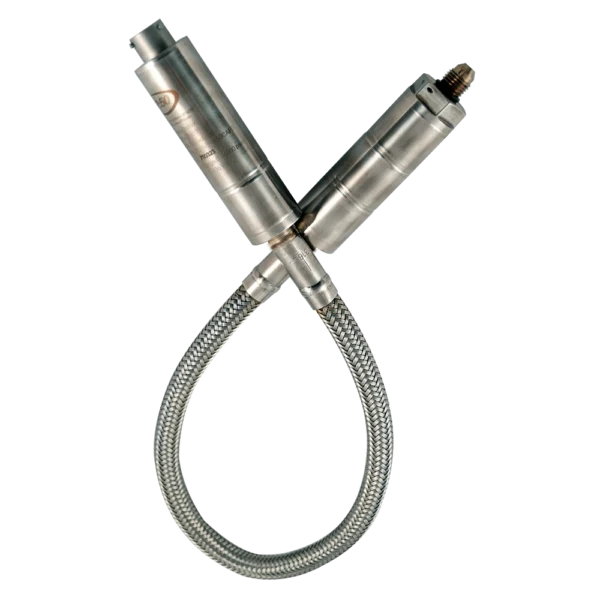

Model 7780 High Temperature Pressure Transducer Series from GP:50  offers consistent measurement accuracy in temperatures up to +350 °F (+177 °C). The Series features a lightweight, all stainless steel construction with choice of either 4-20 mA, 0 to 5 Vdc, or 0 to 10 Vdc  output; or optional digital protocols. Onboard isolated transducer electronics are remotely mounted via stainless steel armor jacketed flex tubing. The high-reliability of the Model 7780 Series is field-proven over 25 years and hundreds of applications, including higher shock and vibration environments.

Categories: , , Tags: , , , , , , , , , , , ,

Description

Model 7780 High Temperature Pressure Transducer Series from GP:50  offers consistent measurement accuracy in temperatures up to +350 °F (+177 °C). The Series features a lightweight, all stainless steel construction with choice of either 4-20 mA, 0 to 5 Vdc, or 0 to 10 Vdc  output; or optional digital protocols. Onboard isolated transducer electronics are remotely mounted via stainless steel armor jacketed flex tubing. The high-reliability of the Model 7780 Series is field-proven over 25 years and hundreds of applications, including higher shock and vibration environments.

Additional information

Markets

Pressure Ranges
