| Product Specs | |
|---|---|
| Model: | 251/351 (Flush Diaphragm) | Range: | 0-1000 thru 0-43K PSI (70 BAR thru 2,965 BAR) | Certification: | 3A | Warranty: | Product Warranty |

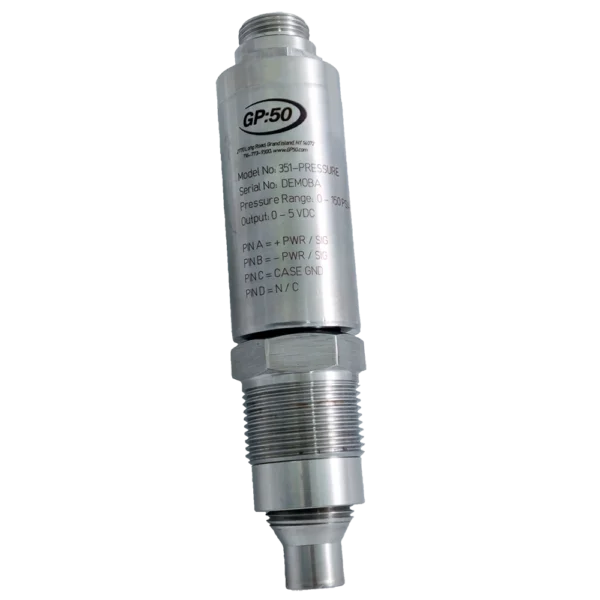

Model 251/351 Flush High-Pressure Transmitter from GP:50 is a sanitary flush pressure transmitter with a unique one-piece design. This flush design provides a zero dead volume eliminating the need for recessed tee’s or dead ended process connections. This design removes the possibility of trapped media or contamination and allows for a clean out-of-place (COP) device, providing for a sanitary, in-line solution.
Model 251/351 Flush High-Pressure Transmitter from GP:50 is a sanitary flush pressure transmitter with a unique one-piece design. This flush design provides a zero dead volume eliminating the need for recessed tee’s or dead ended process connections. This design removes the possibility of trapped media or contamination and allows for a clean out-of-place (COP) device, providing for a sanitary, in-line solution.
| Markets | |
|---|---|
| Pressure Ranges | Mid-Range: 30" WC – 15,000 PSI, Ultra-High Range: >15,000 PSI |
| Model: | 240/340-IM (Oil & Gas) |
| Range: | 0-75 thru 0-750 PSI (5 thru 52 BAR) gauge, sealed gauge, absolute |
| Certification: | ATEX & IEC Hazardous Approvals |
| Warranty: | Product Warranty |
Model 240/340-IM Flush Mount Pressure Transmitter Series from GP:50 is a flush face mounted industrial pressure transmitter. It is expressly designed for higher viscosity media, particularly where such media can otherwise clog or damage traditional non-flush port sensor designs. The rugged, all-welded, Inconel design of the 40-IM series allows for greater compatibility with corrosive media. No zero offset is caused during sensor installation.
Buy Online Learn More
| Model: | 250/350 AI/AN (Sanitary) |
| Range: | 0 to 3000 thru 0-60K PSI (207 BAR thru 4,137 BAR) |
| Certification: | ATEX/IEC Intrinsically Safe, 3A |
| Warranty: | Product Warranty |
Model 250/350 AI/AN Sanitary Flow-Thru Pressure Transducerseries from GP:50 is a flow-thru pressure transmitter with a unique one-piece design. This flow-thru design provides a zero internal dead volume eliminating the need for piping tees or dead ended process connections. This design removes the possibility of trapped media or contamination and allows for a Clean In Place (CIP) device, providing for a sanitary, in-line solution for the pharmaceutical market especially rated for high pressure homogenization systems.
Learn More
| Model: | 280/380 and 283/383 (Sanitary) |
| Range: | From 0 to 30" WC thru 0 to 1,000 PSI |
| Certification: | FM, CSA Explosion Proof Option Available |
| Warranty: | Product Warranty |
Models 280/380 and 283/383 Sanitary Tri-Clamp Pressure Transmitters from GP:50 are a family of food and beverage grade tri-clamp process connection pressure transmitters. Their rugged design also meets 3A sanitary standards for dairy applications. Tri-clamp fitting sizes as small as 3/4” are available to provide reduced surface area exposure. The Model 383 is also available with optional high-temperature compensation to +400 °F (+204 °C). Standard models feature all 316L stainless steel construction. Optional Inconel or Hastelloy wetted parts may be substituted for improved corrosion resistance. An optional vented quick disconnect cable provides a barometric reference on lower ranges while providing a NEMA 4X rating.
Learn More
| Model: | 240/340 AI/AN/AF (Oil & Gas) |
| Range: | 0 to 1 PSI thru 0 to 50K PSI *Some Options May Affect Range PSIG, PSIS PSIA, PSIV & Compound Ranges Available |
| Certification: | ATEX & IEC Approvals |
| Warranty: | Product Warranty |
Model 240/340 AI/AN/AF Hazardous Locations Pressure Transmitter Series from GP:50 incorporates over 25 years of oil field proven design in a 1” diameter package. The 40 Series provides a rugged solution for hazardous approved areas, especially where space constraints are a concern. Its all-welded stainless steel design will provide years of reliable service in some of the harshest environments.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
