| Product Specs | |
|---|---|
| Model: | 311-IM | Range: | 0 to 50 PSI thru 0 to 750 PSI (0 to 3 thru 0 to 50 BAR) *Some Options May Affect Range *PSIG, PSIS, PSIA, PSIV Compound Ranges Available | Warranty: | Product Warranty |

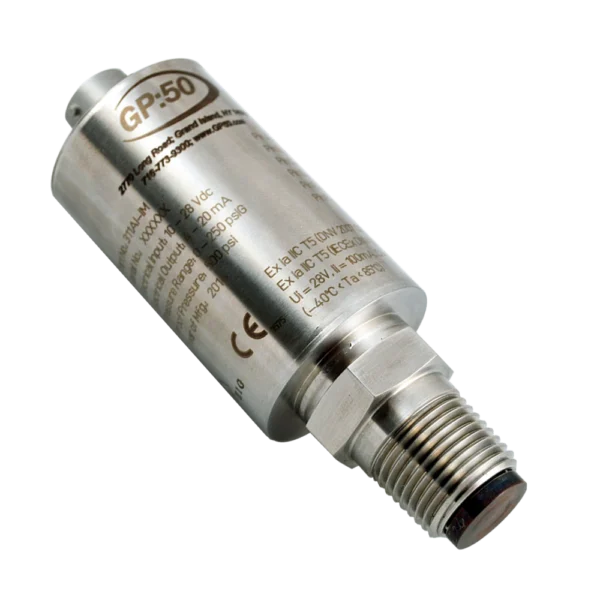

The Model 311-IM from GP:50 is a flush mounted, hazardous location approved pressure transducer, designed to provide added reliability within slurry or thick process media applications. Their rugged, all-welded flush mounted design facilitates accurate measurements of corrosive or higher viscosity media, in applications where non-flush port sensors are otherwise
prone to clogging or damage. No zero offset is caused during sensor installation.
The Model 311-IM from GP:50 is a flush mounted, hazardous location approved pressure transducer, designed to provide added reliability within slurry or thick process media applications. Their rugged, all-welded flush mounted design facilitates accurate measurements of corrosive or higher viscosity media, in applications where non-flush port sensors are otherwise
prone to clogging or damage. No zero offset is caused during sensor installation.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 240/340-IM |
| Range: | 0-75 thru 0-750 PSI (5 thru 52 BAR) gauge, sealed gauge, absolute |
| Certification: | ATEX & IEC Hazardous Approvals |
| Warranty: | Product Warranty |
The Model 40-IM Series from GP:50 is a flush face mounted industrial pressure transmitter. It is expressly designed for higher viscosity media, particularly where such media can otherwise clog or damage traditional
non-flush port sensor designs. The rugged, all-welded, Inconel design of the 40-IM series allows for greater compatibility with corrosive media. No zero offset is caused during sensor installation.
| Model: | Model 611/612 |
| Range: | • (Model 611) 0 to 1 thru 0 to 15K PSIG (0-0.069 thru 0-1,034 BAR) • (Model 612) 0 to 20k thru 0 to 100K PSIG ( 0-1,379 thru 0-6,895 BAR) |
| Warranty: | Product Warranty |
The Model 611/612 from GP:50 is a USB output pressure transducer. This model features an intuitive and user-friendly interface that allows for
field configuration. For customer convenience, an easy-to-use data acquisition and analysis software is available and fully compatible with
any Windows-based terminal program.
| Model: | 7500-9000 |
| Range: | 0 to 5K thru 0 to 25K PSI (345 thru 1,724 BAR) |
| Warranty: | Product Warranty |
The Model 7500-9000 Series from GP:50 is a high accuracy pressure and temperature transmitter, offering more than 15 years of field-proven pedigree within subsea wellhead applications. The Series features a robust design with all stainless steel housings and wetted parts, full seawater submersibility to 30K ft (9,144 M) and an API flanged process connection. An optional redundant sensor provides backup pressure and temperature outputs, in the case of prime element failures or cabling issues. Optional HART communication protocols are available for remote measurements.
Learn More
| Model: | 243/343 |
| Range: | 0-50 thru 0-10K PSI (3.5 thru 690 BAR) *Gauge, Sealed Gauge, Absolute |
| Warranty: | Product Warranty |
The Model 243 / 343 Series from GP:50 is an all-stainless steel, dual pressure and temperature transducer with 4-20 mA and 0-5 V output.
Its compact design reduces I/O and insertion points where size and weight are considerations. Units are available in a variety of pressure and
temperature ranges.
