| Product Specs | |
|---|---|
| Model: | 1003T (Oil & Gas) | Warranty: | Product Warranty |

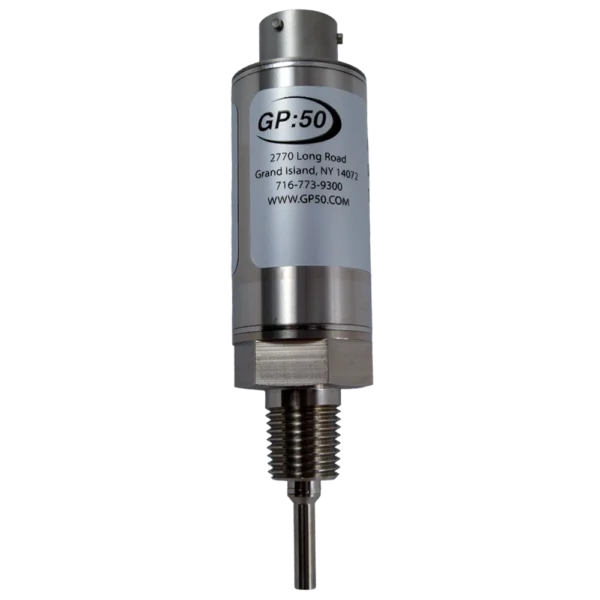

Model 1003T Economy-OEM Temperature Transmitter series from GP:50 offers the most common industrycalibrated temperature ranges, process ports, and electrical connection. The 1003T Series provides for better lead times and lower unit cost while delivering a reliable, accurate, temperature measurement.
Model 1003T Economy-OEM Temperature Transmitter series from GP:50 offers the most common industrycalibrated temperature ranges, process ports, and electrical connection. The 1003T Series provides for better lead times and lower unit cost while delivering a reliable, accurate, temperature measurement.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 241/341 (AERO) |
| Range: | 0-30” WC thru 8K PSI (552 BAR) *Gauge, Vacuum, Absolute, Sealed Gauge (Both Hermetic & Non-Hermetic) |
| Warranty: | Product Warranty |
Model 241/341 high accuracy pressure transducer from GP:50 is our most accurate pressure transducer. Designed specifically for aerospace and automotive test stand applications, it is 5x tighter through temperature than standard industrial transmitters with a 0.20% FSO / 100 °F thermal stability. More than 25 years of field expertise went into the design of our pressure transducer for exceptional reliability. The compact, corrosion-resistant, all-welded stainless steel design of the Model 241/341 offers ease of installation within space constrained environments. Static accuracy is available to ±0.05% FSO, with a total thermal error of 0.25% FSO over the compensated temperature range.
Learn More
| Model: | 1171 (Oil & Gas) |
| Range: | 0 to 15 PSIV, 0 to 2 PSIG, A thru 0 to 100K PSISG, PSIA (1 BAR V thru 6,895 BAR) 5:1 On Ranges 5 PSI (0.3 BAR) |
| Certification: | FM, CSA Intrinsically Safe and Explosion Proof Ratings |
| Warranty: | Product Warranty |
Model 1171 Field Rangeable Process Pressure Transmitter Series from GP:50 is a rugged, hermetically sealed pressure transmitter which features magnetic coupling adjusts for full field calibration with 5:1 turndown ratio. Their compact, corrosion-resistant, all-welded stainless steel construction provides reliable, maintenance-free service life within harsh marine and offshore oil and gas environments.
Learn More
| Model: | 7720 (AERO) |
| Range: | Ranges 0 to 300 thru 0 to 6K PSI or PSISG (20 thru 413 BAR) |
| Warranty: | Product Warranty |
Model 7720 cryogenic pressure transducer from GP:50 offers consistent measurement accuracy in temperatures as low as -320 °F (-196 °C). The Series features a lightweight, all stainless steel construction with choice of either 4-20 mA, 0 to 5 Vdc, or 0 to 10 Vdc output; or optional digital protocols. Onboard isolated transducer electronics are remotely mounted via stainless steel armor jacketed flex tubing. The high-reliability of the Model 7720 Series has been successfully field-proven over 25 years and hundreds of critical applications.
Learn More
| Model: | Model 112/212/312 (Industrial) |
| Range: | 0 to 20K thru 0 to 100K PSI (1,079 thru 6,895 BAR) |
| Warranty: | Product Warranty |
Model 112/212/312 Ultra High Range Pressure Transducer from GP:50 is offered in a single piece sensor design with no welds or seals. All stainless steel construction and industry standard highpressure coned process connections are available in both English and Metric sizes.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
