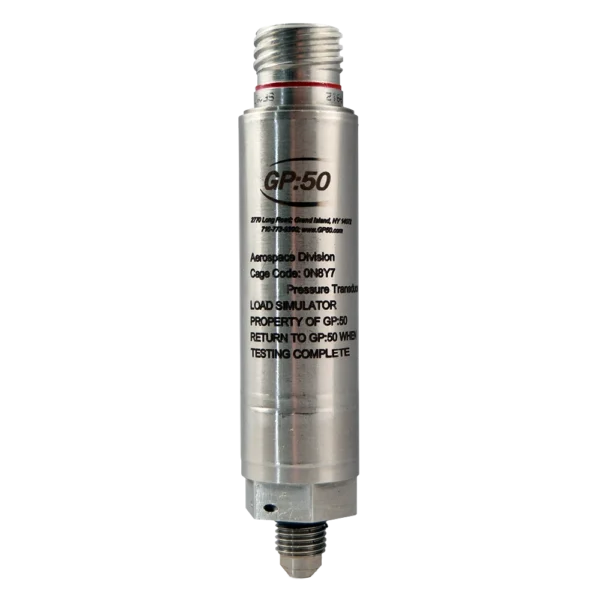

Model 7200 Flight Heritage Pressure Transducer

Model 7200 | Flight Heritage Pressure Transducer

Download Datasheet Request Quote
Product Specs
Model: 7200 (AERO)
Range: 0-1 PSIG, 0-3 PSIA thru 0-15K PSI options (69 mBAR thru 1,034.2 BAR)
Warranty: Product Warranty

Model 7200 Flight Heritage Pressure Transducer series from GP:50 is a flight heritage static pressure transducer, designed to provide high-accuracy pressure measurements within commercial aviation, military, aerospace, UAV, satellite, and defense applications. This highly rugged and highly reliable Model 7200 is field proven over 25 years and hundreds of applications, including higher shock and vibration environments, and is available in both test and program volumes to suit a variety of requirements.

SKU: 7200 Categories: , Tags: , , , , , , , , , , ,

Description

Model 7200 Flight Heritage Pressure Transducer series from GP:50 is a flight heritage static pressure transducer, designed to provide high-accuracy pressure measurements within commercial aviation, military, aerospace, UAV, satellite, and defense applications. This highly rugged and highly reliable Model 7200 is field proven over 25 years and hundreds of applications, including higher shock and vibration environments, and is available in both test and program volumes to suit a variety of requirements.

Additional information

Markets

Pressure Ranges
