| Product Specs | |
|---|---|
| Model: | 136/236/336 | Range: | 1 PSID thru 500 PSID (0.1 thru 25 BAR D) *Other Ranges Available | Warranty: | Product Warranty |

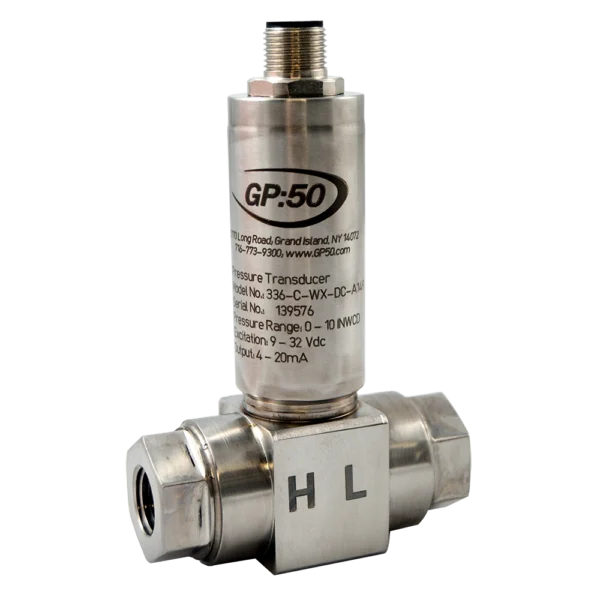

The Model 136/236/336 from GP:50 is a family of highly accurate, digitally compensated differential pressure transducers. Model 136/236/336 measures differential pressure ranges as low as 20” WCD and line pressures up to 1000 PSID (69 BAR) in a compact size. Customers may also choose from among multiple accuracy, digital output, process and electrical connections. Please consult the factory for details.
The Model 136/236/336 from GP:50 is a family of highly accurate, digitally compensated differential pressure transducers. Model 136/236/336 measures differential pressure ranges as low as 20” WCD and line pressures up to 1000 PSID (69 BAR) in a compact size. Customers may also choose from among multiple accuracy, digital output, process and electrical connections. Please consult the factory for details.
| Markets | Aerospace, Automotive, Industrial Automation, Oil & Gas, Testing |
|---|---|
| Pressure Ranges |
| Model: | 7500-9000 |
| Range: | 0 to 5K thru 0 to 25K PSI (345 thru 1,724 BAR) |
| Warranty: | Product Warranty |
The Model 7500-9000 Series from GP:50 is a high accuracy pressure and temperature transmitter, offering more than 15 years of field-proven pedigree within subsea wellhead applications. The Series features a robust design with all stainless steel housings and wetted parts, full seawater submersibility to 30K ft (9,144 M) and an API flanged process connection. An optional redundant sensor provides backup pressure and temperature outputs, in the case of prime element failures or cabling issues. Optional HART communication protocols are available for remote measurements.
Learn More
| Model: | 170QX 270QX 370QX |
| Range: | 0 to 1000 PSI thru 0 to 20K PSI (69 thru 1,379 BAR) |
| Certification: | FM/CSA/ATEX/IEC Intrinsic Safety FM/CSA/ATEX/IEC Zone CE Marked |
| Warranty: | Product Warranty |
GP:50’s Model 370-QX series is designed for High Pressure High Temperature (HPHT) well applications. This series is designed to fit the standard WECO® 2”- 1502 or 2”- 2002/2202 unions and operates at
a continuous process temperature to +350 °F (+177 °C). It offers reliable service in high shock and vibration applications such as cementing, fracturing and drilling mud pressure measurement.
| Model: | 170/270/370 |
| Range: | 0 to 1,000 PSI thru 0 to 20K PSI (69 thru 1,379 BAR) |
| Certification: | FM/CSA/ATEX/IEC CE Marked |
| Warranty: | Product Warranty |
The industry exclusive Model 170/270/370 WECO® Hammer Union Pressure Transmitter from GP:50 is ruggedly designed and engineered to effectively address demanding shock and vibration and installation challenges within the oilfield environment. Units are directly compatible with WECO® 2”-1502, 2202, 2002 or 602 wing union fittings. They are also available in multiple outputs, ranges, electrical connections, and area approvals to meet specific requirements.
Buy Online Learn More
| Model: | Model 211/311 HD-QX & 240/340 HD-QX | Cryogenic & High Temperature Pressure Transducer |
| Range: | Cryogenic Ranges: 50 PSI thru 6K PSIG (3.5 thru 345 BAR) High Temperature Ranges: 150 PSI thru 15K PSIG *Sealed Gauge or Absolute Formats |
| Certification: | ATEX, CSA Approvals |
| Warranty: | Product Warranty |
The Model 211/311 HD-QX & 240/340 HD-QX Series from GP:50 offer reliable pressure sensing in cryogenic or high temperature applications.
Remote mounted electronics provide a highlevel 4-20 mA or 0-5 Vdc output with optional CANbus, RS485 Modbus, USB or RS232 digital protocols. The SST, armor jacketed cable provides flexibility in mounting the electronics away from the process temperature. 18”-36” remote flex lengths are available.
