| Product Specs | |
|---|---|
| Model: | 340T/240T (Oil & Gas) | Range: | 0°F to +250°F (-18°C to +121°C) |
Warranty: | Product Warranty |

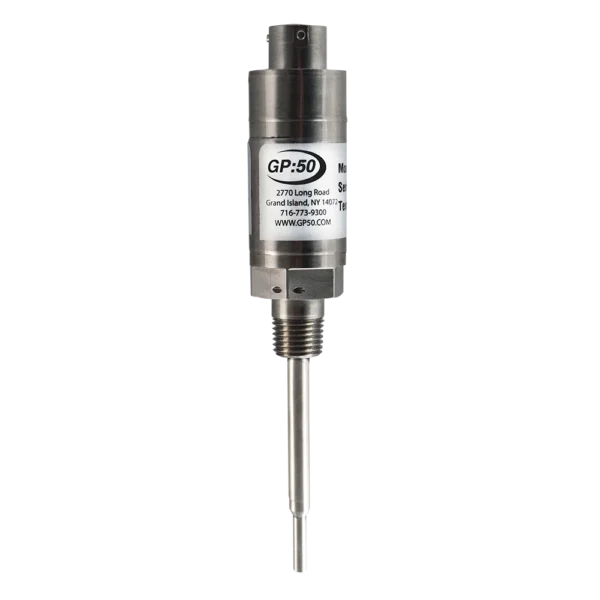

Model 340T/240T Temperature Transmitter is essential where reliable and accurate process temperatures are required. With a large range of temperature ranges and probe lengths available, the Model 340T is adaptable for most temperature applications or processes. The compact size provides easy installation for on-board vehicles used in the oil and gas industry.
Model 340T/240T Temperature Transmitter is essential where reliable and accurate process temperatures are required. With a large range of temperature ranges and probe lengths available, the Model 340T is adaptable for most temperature applications or processes. The compact size provides easy installation for on-board vehicles used in the oil and gas industry.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 216/316 (Differential Pressure) |
| Range: | 2.5” WCD thru 200 PSID *Alternate Ranges Available |
| Warranty: | Product Warranty |

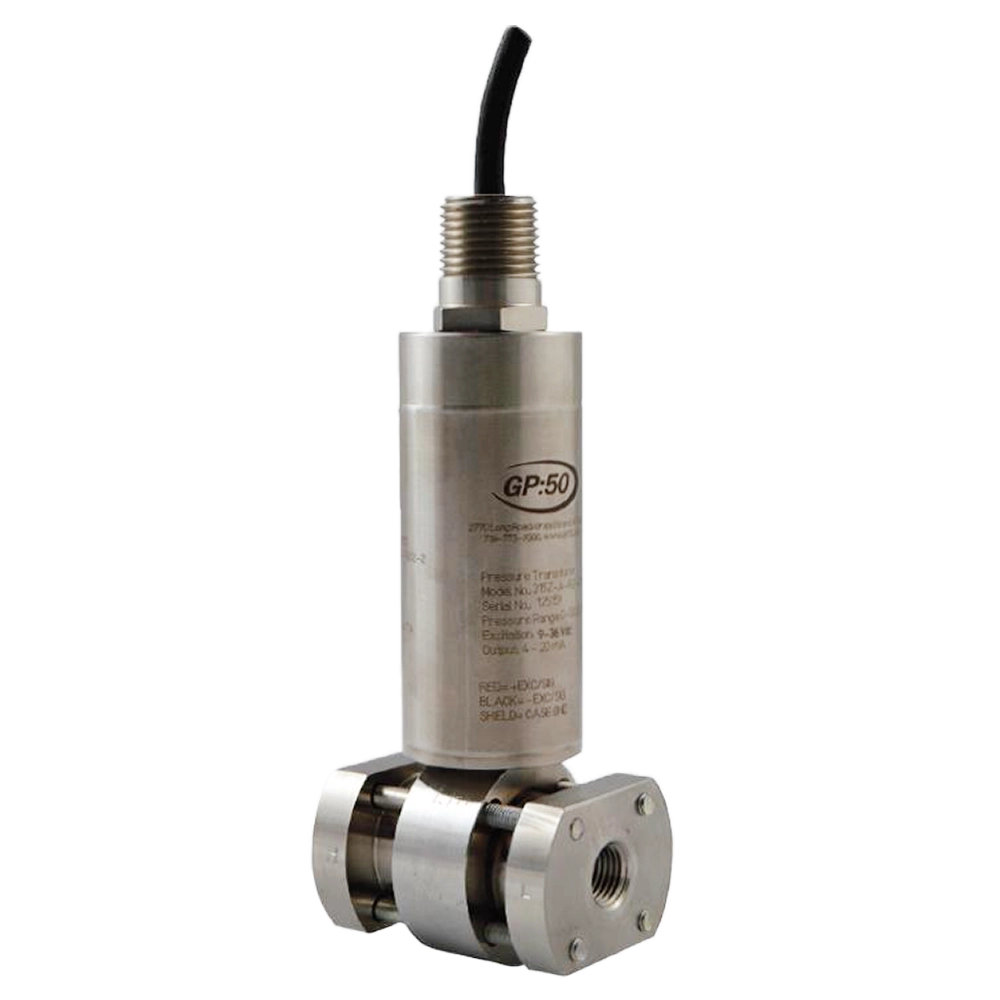

Model 216/316 low range high line differential pressure transducers from GP:50 feature a compact design which incorporates the company’s own digital correction circuit technology for high accuracy and extended service life across a variety of applications.
Learn More
| Model: | 7850 (AERO) |
| Range: | SYSTEM PRESSURE: Up to 2000 PSI (138 BAR) (Optional 0-10,000 PSI available) TEMP RANGES:-100°F to +392°F (-73°C to +200°C) |
| Warranty: | Product Warranty |
Model 7850 Subsea Temperature Transducer from GP:50 is a rugged,
sub-sea temperature transducer, tested to 30,000 FT sea water. The highly corrosion resistant design meets the tough environmental challenges of offshore oil and gas, Naval and ROV applications.
| Model: | 7300 (AERO) |
| Range: | 0 to 1 thru 0 to 500 PSID (0.07 BAR thru 34.5 BAR) Bi-directional or Uni-directional |
| Warranty: | Product Warranty |
Model 7300 flight heritage differential pressure transducer from GP:50 is digitally corrected to provide high-accuracy pressure measurement. The
compact, proprietary sensor design provides added zero stability required for commercial aviation, military, aerospace, UAV, satellite, and defense applications.
| Model: | 7400 (AERO) |
| Range: | 0 to 30 thru 0 to 7,500 PSID (2 thru 517 BAR) *Bi-directional or Uni-directional |
| Warranty: | Product Warranty |
Model 7400 high line aerospace differential pressure transducer from GP:50 with true wet-wet all stainless steel design allows it to effectively measure both corrosive fluid and industrial gas pressures to high degrees of accuracy and repeatability.
Its optional 10X proof pressure and 10K PSI (689 BAR) line rating also facilitates its use within demanding aircraft engine and hydraulic systems. In addition to expanded ranges, a variety of pressure ports, electrical connections, outputs, and wetted part materials are available. Please consult the factory
for details.
Email Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
