| Product Specs | |
|---|---|
| Model: | 243/343 AI/AN (Industrial) | Range: | 0-50 thru 0-10K PSI (3.5 thru 690 BAR) *Gauge, Sealed Gauge, Absolute | Certification: | EX, IEC | Warranty: | Product Warranty |

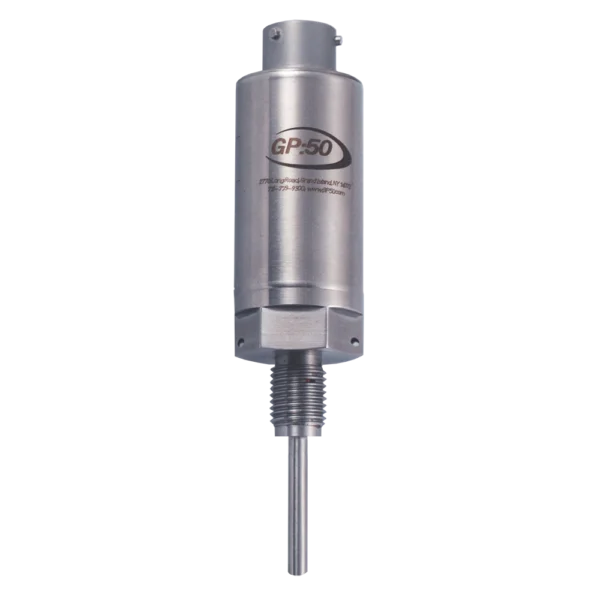

Model 243/343 AI/AN Dual Pressure and Temperature Transducer Series from GP:50 is an all-stainless steel, dual pressure and temperature transducer with 4-20 mA and 0-5 V output. Its compact design reduces I/O and insertion points where size and weight are considerations. Units are available in a variety of pressure and temperature ranges.
Model 243/343 AI/AN Dual Pressure and Temperature Transducer Series from GP:50 is an all-stainless steel, dual pressure and temperature transducer with 4-20 mA and 0-5 V output. Its compact design reduces I/O and insertion points where size and weight are considerations. Units are available in a variety of pressure and temperature ranges.
| Markets | Aerospace, Automotive, Industrial Automation, Oil & Gas, Testing |
|---|---|
| Pressure Ranges |
| Model: | 7790 (AERO) |
| Range: | 0 to 300 thru 0 to 15K PSIA, PSIG, or PSISG Options (20 thru 1,034 BAR) |
| Warranty: | Product Warranty |
Model 7790 High Temperature Pressure and Temperature transducer series from GP:50 provides pressure and temperature measurement up to +350 °F (+177 °C). The remote electronics provides a high level output of 4-20 mA or 0 to 5 Vdc while reducing the overall footprint by integrating pressure and temperature measurement in one device.
Learn More
| Model: | 7710 (AERO) |
| Range: | Designed for up to 2000 PSI (138 BAR) higher system pressures also available |
| Warranty: | Product Warranty |
Model 7710 cryogenic temperature transducer from GP:50 is designed to provide high-reliability low-temperature measurements to -320°F (-196 °C) within a rugged, all-stainless steel package. Remotely mounted electronics provide a high-level signal output of either 4-20 mA; 0 to 5 Vdc; or 0 to 10 Vdc, as well as choice of RS232 or RS485 for improved cryogenic measurement accuracy and higher resolution. Stainless steel
armor jacketed cabling provides added protection from extreme environmental conditions.
| Model: | 241/341 (AERO) |
| Range: | 0-30” WC thru 8K PSI (552 BAR) *Gauge, Vacuum, Absolute, Sealed Gauge (Both Hermetic & Non-Hermetic) |
| Warranty: | Product Warranty |
Model 241/341 high accuracy pressure transducer from GP:50 is our most accurate pressure transducer. Designed specifically for aerospace and automotive test stand applications, it is 5x tighter through temperature than standard industrial transmitters with a 0.20% FSO / 100 °F thermal stability. More than 25 years of field expertise went into the design of our pressure transducer for exceptional reliability. The compact, corrosion-resistant, all-welded stainless steel design of the Model 241/341 offers ease of installation within space constrained environments. Static accuracy is available to ±0.05% FSO, with a total thermal error of 0.25% FSO over the compensated temperature range.
Learn More| Model: | 240/340-IM (Oil & Gas) |
| Range: | 0-75 thru 0-750 PSI (5 thru 52 BAR) gauge, sealed gauge, absolute |
| Certification: | ATEX & IEC Hazardous Approvals |
| Warranty: | Product Warranty |
Model 240/340-IM Flush Mount Pressure Transmitter Series from GP:50 is a flush face mounted industrial pressure transmitter. It is expressly designed for higher viscosity media, particularly where such media can otherwise clog or damage traditional non-flush port sensor designs. The rugged, all-welded, Inconel design of the 40-IM series allows for greater compatibility with corrosive media. No zero offset is caused during sensor installation.
Buy Online Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
