Model: | 218/318 (Flush Diaphragm) |
Range: | 0 to 30" WC thru 0 to 1K PSI (150 mBAR to 59 BAR) |
Certification: | Complies with 3A Standard 74-06 |
Warranty: | Product Warranty |
Model 218/318 Sanitary Flush Diaphragm Pressure Transmitter series from GP:50 provides a thread on flush process connection that meets 3A sanitary design standards. The NEMA 4X all welded stainless steel provides protection from water ingress and is designed for the extremes associated with food and beverage processing. An optional high temperature version provides reliable operation in CIP processes to +250 °F (+121 °C).
Learn More
Model: | 251/351 (Flush Diaphragm) |
Range: | 0-1000 thru 0-43K PSI (70 BAR thru 2,965 BAR) |
Certification: | 3A |
Warranty: | Product Warranty |
Model 251/351 Flush High-Pressure Transmitter from GP:50 is a sanitary flush pressure transmitter with a unique one-piece design. This flush design provides a zero dead volume eliminating the need for recessed tee’s or dead ended process connections. This design removes the possibility of trapped media or contamination and allows for a clean out-of-place (COP) device, providing for a sanitary, in-line solution.
Learn More
Model: | 280/380 and 283/383 (Flush Diaphragm) |
Range: | From 0 to 30" WC thru 0 to 1,000 PSI |
Certification: | FM, CSA Explosion Proof Option Available |
Warranty: | Product Warranty |
Models 280/380 and 283/383 Sanitary Tri-Clamp Pressure Transmitter from GP:50 are a family of food and beverage grade tri-clamp process connection pressure transmitters. Their rugged design also meets 3A sanitary standards for dairy applications. Tri-clamp fitting sizes as small as 3/4” are available to provide reduced surface area exposure. The Model 383 is also available with optional high-temperature compensation to +400 °F (+204 °C). Standard models feature all 316L stainless steel construction. Optional Inconel or Hastelloy wetted parts may be substituted for improved corrosion resistance. An optional vented quick disconnect cable provides a barometric reference on lower ranges while providing a NEMA 4X rating.
Learn More

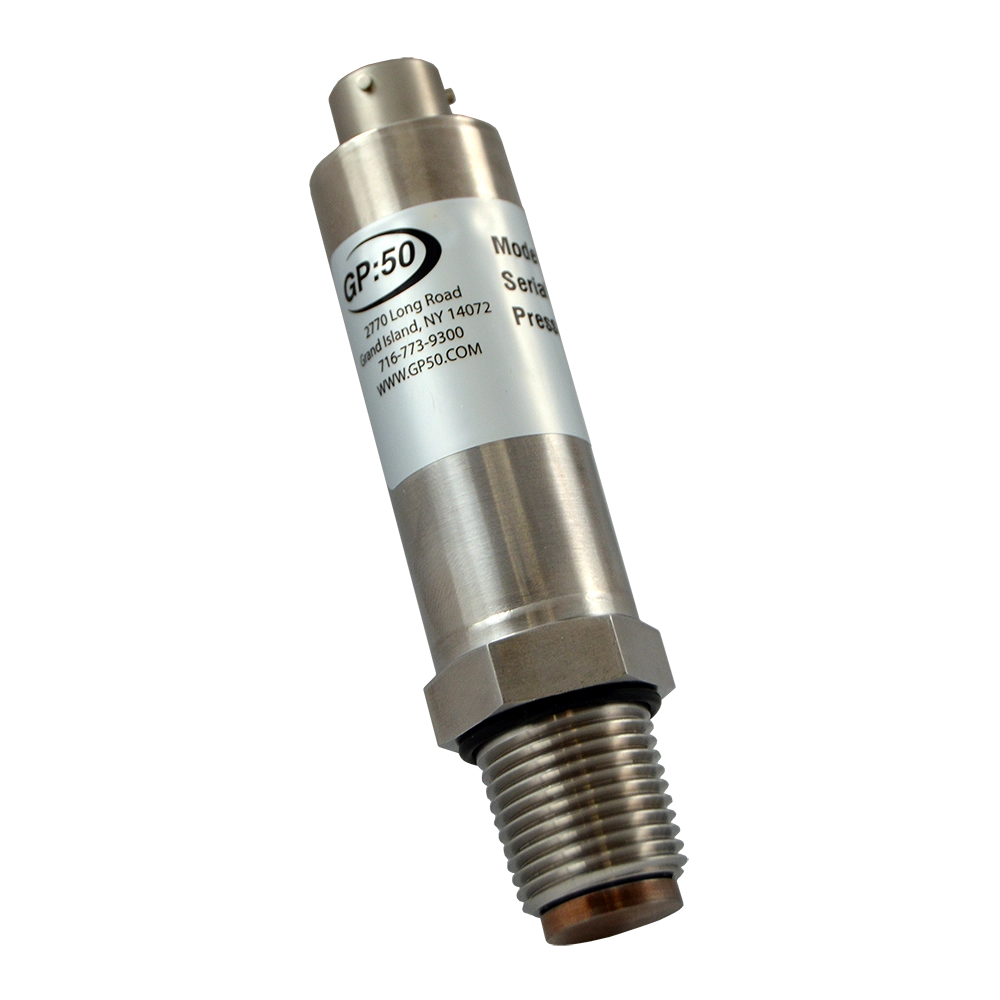

Model: | 240/340-IM (Flush Diaphragm) |
Range: | 0-75 thru 0-750 PSI (5 thru 52 BAR) gauge, sealed gauge, absolute |
Certification: | ATEX & IEC Hazardous Approvals |
Warranty: | Product Warranty |
Model 240/340-IM Flush Mount Pressure Transmitter series from GP:50 is a flush face mounted industrial pressure transmitter. It is expressly designed for higher viscosity media, particularly where such media can otherwise clog or damage traditional non-flush port sensor designs. The rugged, all-welded, Inconel design of the 40-IM series allows for greater compatibility with corrosive media. No zero offset is caused during sensor installation.
Buy Online
Learn More
Model: | 117 / 217 /317 / 317Z (Flush Diaphragm) |
Range: | From 0 to 50 thru 0 to 10K PSI (3.4 to 689 BAR) |
Certification: | FM/ CSA Intrinsically Safe Approval (317Z) |
Warranty: | Product Warranty |
Model 117/ 217/ 317/ 317Z Industrial Grade Flush Diaphragm Pressure Transmitter series eliminates clogging of the process port in applications where a viscous or sticky media is used. The 316L wetted parts with optional Hastelloy-C make this impervious to corrosive medias and provide standard operating temperatures to +250 °F (+121 °C), with a +350 °F (+177 °C) option.
Learn More
Model: | 188/288/388 (Flush Diaphragm) |
Range: | 300 PSI to 20K PSI (21 to 1,379 BAR) *Consult Factory For Other Ranges |
Warranty: | Product Warranty |
Model 188/288/388 Miniature Flush Diaphragm Pressure Transducer from GP:50 is a family of all welded stainless steel miniature flush diaphragm pressure transducers. Their unique design incorporates a specialty flush process connection. This allows the transducer to effectively support higher viscosity fluid pressure measurements without port clogging or plugging. Their compact size allows for ease of installation within space constrained environments.
Learn More
Model: | 311-IM (Flush Diaphragm) |
Range: | 0 to 50 PSI thru 0 to 750 PSI (0 to 3 thru 0 to 50 BAR) *Some Options May Affect Range *PSIG, PSIS, PSIA, PSIV Compound Ranges Available |
Warranty: | Product Warranty |
Model 311-IM Hazardous Location Flush Mount Pressure Transducer from GP:50 is a flush mounted, hazardous location approved pressure transducer, designed to provide added reliability within slurry or thick process media applications. Their rugged, all-welded flush mounted design facilitates accurate measurements of corrosive or higher viscosity media, in applications where non-flush port sensors are otherwise prone to clogging or damage. No zero offset is caused during sensor installation.
Learn More
