| Product Specs | |
|---|---|
| Model: | BCH2000 | Warranty: | Product Warranty |

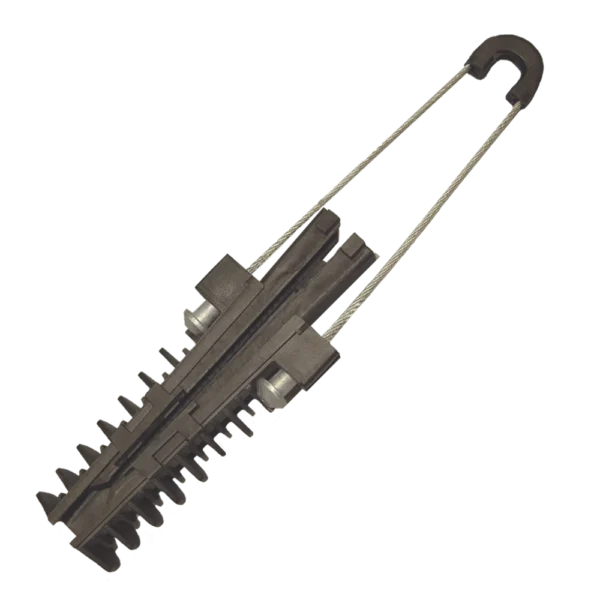

The Model BCH2000 Cable Hanger from GP:50 is designed to eliminate unnecessary stresses on the transmitter while installed in the application. Affordably priced, the BCH2000 Cable Hanger is designed for easy installation within a variety of environments.
The Model BCH2000 Cable Hanger from GP:50 is designed to
eliminate unnecessary stresses on the transmitter while installed in
the application. Affordably priced, the BCH2000 Cable Hanger is
designed for easy installation within a variety of environments.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 240/340 AI/AN/AF (Industrial) |
| Range: | 0 to 1 PSI thru 0 to 50K PSI *Some Options May Affect Range PSIG, PSIS PSIA, PSIV & Compound Ranges Available |
| Certification: | ATEX & IEC Approvals |
| Warranty: | Product Warranty |
Model 40 Hazardous Locations Pressure Transmitter Series from GP:50 incorporates over 25 years of oil field proven design in a 1” diameter package. The 40 Series provides a rugged solution for hazardous approved areas, especially where space constraints are a concern. Its all-welded stainless steel design will provide years of reliable service in some of the harshest environments.
Learn More| Model: | 240/340-IM (Flush Diaphragm) |
| Range: | 0-75 thru 0-750 PSI (5 thru 52 BAR) gauge, sealed gauge, absolute |
| Certification: | ATEX & IEC Hazardous Approvals |
| Warranty: | Product Warranty |
Model 240/340-IM Flush Mount Pressure Transmitter series from GP:50 is a flush face mounted industrial pressure transmitter. It is expressly designed for higher viscosity media, particularly where such media can otherwise clog or damage traditional non-flush port sensor designs. The rugged, all-welded, Inconel design of the 40-IM series allows for greater compatibility with corrosive media. No zero offset is caused during sensor installation.
Buy Online Learn More
| Model: | 1002/1003-CA (Industrial) |
| Range: | 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR), gauge, vacuum, and absolute pressure reference available |
| Certification: | CE |
| Warranty: | Product Warranty |
Model 1002/1003-CA Low-Cost OEM Pressure Transducer from GP:50 is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc or 0 to 10 Vdc output, as well as various electrical connection and pressure port options. Typical applications for the Model 1002/1003-CA include off-road vehicle, HVAC/R, hydraulic and pneumatic control systems, pumps and compressors, and industrial engine pressure monitoring.
Learn More
| Model: | 411-M351 (Submersibles) |
| Range: | 0 to 5 thru 0 to 500 PSI (0 to 10 feet thru 0 to 1,153 feet WC) (0 to 3 thru 0 to 335 meters WC) |
| Certification: | CSA/FM Hazardous Approvals |
| Warranty: | Product Warranty |
Model 411-M351 Field Rangeable Submersible Transmitter from GP:50 is a submersible lift station and sludge level transmitter with field adjustability. It’s all stainless-steel design incorporates a 3-inch diameter clog-resistant sensing diaphragm and corrosion resistant protective baffle plate. These features facilitate high accuracy level measurements, even in heavy sludge conditions. The field adjustment option provides for zero and span adjustments as well as rangeability. This field adjustable option eliminates need to rescale your panel meter when replacing transmitters and allows for fewer units to stock due to rangeability options. This combination of durability and accuracy, coupled with over 25 years of proven field service have helped make the GP:50 Model 411-M351 an industry gold standard for water and wastewater
level monitoring.
