| Product Specs | |
|---|---|
| Model: | 8200 (AERO) | Range: | 0-1 PSIG, 0-3 PSIA thru 0-7500 PSI max options (69 mBAR thru 517 BAR) | Warranty: | Product Warranty |

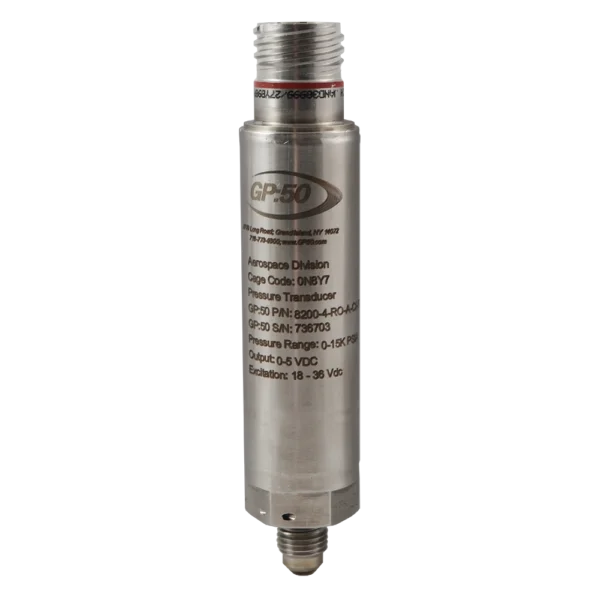

Model 8200 Flight Heritage Digitally Corrected Pressure Transducer from GP:50 is a flight heritage, high level pressure transducer. Digitally corrected to provide high-accuracy pressure measurements with a proprietary sensor design for added zero stability for commercial aviation, military, aerospace, UAV, satellite, and defense applications.
Model 8200 Flight Heritage Digitally Corrected Pressure Transducer from GP:50 is a flight heritage, high level pressure transducer. Digitally corrected to provide high-accuracy pressure measurements with a proprietary sensor design for added zero stability for commercial aviation, military, aerospace, UAV, satellite, and defense applications.
| Markets | |
|---|---|
| Pressure Ranges |
You must be logged in to post a review.
| Model: | 7730 (AERO) |
| Range: | 0 to 300 thru 0 to 6K PSIA or PSIS options (21 thru 413 BAR) (Consult factory for ranges <300 or >6,000 PSIA, PSIS) |
| Warranty: | Product Warranty |
Model 7730 dual cryogenic pressure temperature transducer series from GP:50 provides pressure and temperature measurement in one device down to -320 °F (-196 °C). The remote mounted
electronics offers a high level output of 4-20 mA, 0 to 5 Vdc or various digital protocols at high accuracies. 100 or 1,000 Ω platinum RTD is available as well as dual analog outputs.
| Model: | 7790 (AERO) |
| Range: | 0 to 300 thru 0 to 15K PSIA, PSIG, or PSISG Options (20 thru 1,034 BAR) |
| Warranty: | Product Warranty |
Model 7790 High Temperature Pressure and Temperature transducer series from GP:50 provides pressure and temperature measurement up to +350 °F (+177 °C). The remote electronics provides a high level output of 4-20 mA or 0 to 5 Vdc while reducing the overall footprint by integrating pressure and temperature measurement in one device.
Learn More
| Model: | 7780 (AERO) |
| Range: | 0 to 300 thru 0 to 15K *PSIA, PSIG, or PSISG Options (20 thru 1,034 BAR) |
| Warranty: | Product Warranty |
Model 7780 High Temperature Pressure Transducer Series from GP:50 offers consistent measurement accuracy in temperatures up to +350 °F (+177 °C). The Series features a lightweight, all stainless steel construction with choice of either 4-20 mA, 0 to 5 Vdc, or 0 to 10 Vdc output; or optional digital protocols. Onboard isolated transducer electronics are remotely mounted via stainless steel armor jacketed flex tubing. The high-reliability of the Model 7780 Series is field-proven over 25 years and hundreds of applications, including higher shock and vibration environments.
Learn More
| Model: | 7300 (AERO) |
| Range: | 0 to 1 thru 0 to 500 PSID (0.07 BAR thru 34.5 BAR) Bi-directional or Uni-directional |
| Warranty: | Product Warranty |
Model 7300 flight heritage differential pressure transducer from GP:50 is digitally corrected to provide high-accuracy pressure measurement. The
compact, proprietary sensor design provides added zero stability required for commercial aviation, military, aerospace, UAV, satellite, and defense applications.
