| Product Specs | |
|---|---|
| Model: | 7450 (AERO) | Range: | 2.5" WCD thru 100 PSID | Warranty: | Product Warranty |

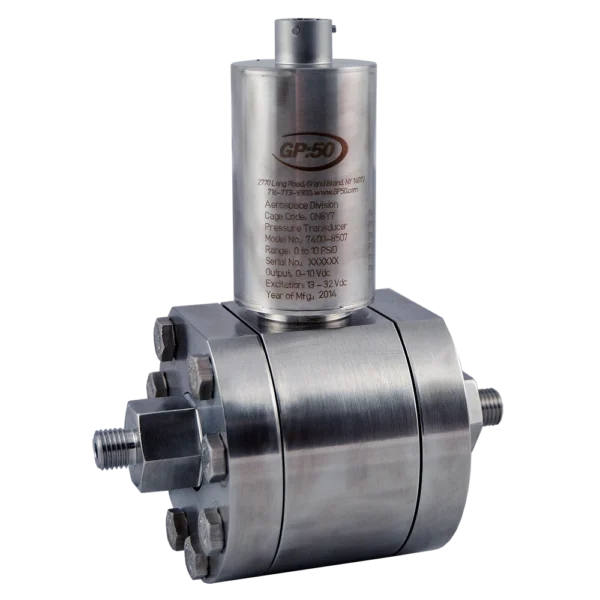

Model 7450 High Line – Low Range Aerospace Differential Pressure Transducer is available with static line pressure to 5,000 PSI. Differential ranges as low as 0-2.5” WCD and a 500 PSI proof pressure are standard on all ranges. A custom subsea rated design allows operation to 23,000 FT SW.
Model 7450 High Line – Low Range Aerospace Differential Pressure Transducer is available with static line pressure to 5,000 PSI. Differential ranges as low as 0-2.5” WCD and a 500 PSI proof pressure are standard on all ranges. A custom subsea rated design allows operation to 23,000 FT SW.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 211/311 HD-QX & 240/340 HD-QX (Industrial) |
| Range: | Cryogenic Ranges: 50 PSI thru 6K PSIG (3.5 thru 345 BAR) High Temperature Ranges: 150 PSI thru 15K PSIG *Sealed Gauge or Absolute Formats |
| Certification: | ATEX, CSA Approvals |
| Warranty: | Product Warranty |
Model 211/311 HD/QX and 240/340 HD/QX Series from GP:50 offer reliable pressure sensing in cryogenic or high temperature applications.
Remote mounted electronics provide a highlevel 4-20 mA or 0-5 Vdc output with optional CANbus, RS485 Modbus, USB or RS232 digital protocols. The SST, armor jacketed cable provides flexibility in mounting the electronics away from the process temperature. 18”-36” remote flex lengths are available.
| Model: | 188/288/388 (Industrial) |
| Range: | 300 PSI to 20K PSI (21 to 1,379 BAR) *Consult Factory For Other Ranges |
| Warranty: | Product Warranty |
Model 188/288/388 Miniature Flush Diaphragm Pressure Transducer from GP:50 is a family of all welded stainless steel miniature flush diaphragm pressure transducers. Their unique design incorporates a specialty flush process connection. This allows the transducer to effectively support higher viscosity fluid pressure measurements without port clogging or plugging. Their compact size allows for ease of installation within space constrained environments.
Learn More
| Model: | 271/371 (Oil & Gas) |
| Range: | 0°F to + 250°F (-18°C to +121°C) -40°F to +250°F (-40°C to +121°C) |
| Certification: | ATEX Intrinsically Safe Approval |
| Warranty: | Product Warranty |
Model 271/371 WECO Hammer Union Temperature Transmitter series from GP:50 is specifically designed to provide accurate temperature measurement in a WECO® union configuration. Optional WECO® union sizes, electrical connections and RTD, 0 to 5 Vdc or 4-20 mA outputs available.
Learn More
| Model: | 111/211/311X/P & 311N/AN/GN (Oil & Gas) |
| Range: | 0 to 5 PSI thru 0 to 75K PSI (75 MBAR to 1,034 BAR) |
| Certification: | FM, CSA, ATEX & IEC Approvals |
| Warranty: | Product Warranty |
Model 111/211/311X/P and 311N/AN/GN Explosion Proof & Zone 2/Div 2 Pressure Transmitter Series from GP:50 provides a rugged solution in hazardous approved areas. The all welded, stainless steel design provides years of reliable service in some of the harshest applications.
