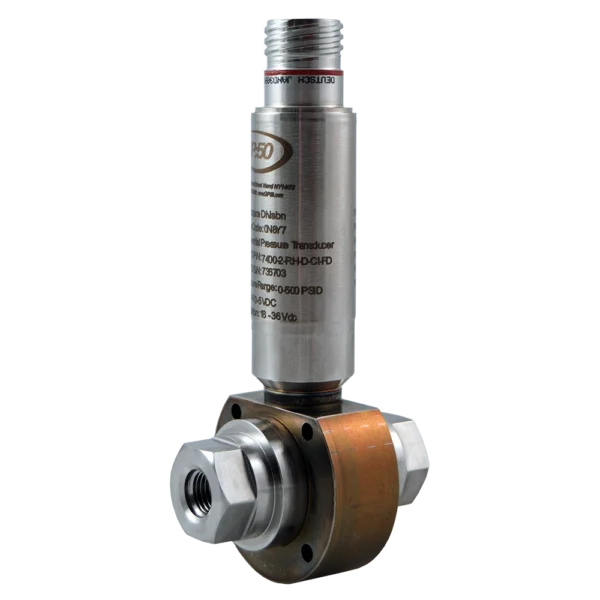

Model 7400 High Line Aerospace Differential Pressure Transducer

Model 7400 | High Line Aerospace Differential Pressure Transducer

Download Datasheet Request Quote
Product Specs
Model: 7400 (AERO)
Range: 0 to 30 thru 0 to 7,500 PSID (2 thru 517 BAR) *Bi-directional or Uni-directional
Warranty: Product Warranty

Model 7400 high line aerospace differential pressure transducer from GP:50 with true wet-wet all stainless steel design allows it to effectively measure both corrosive fluid and industrial gas pressures to high degrees of accuracy and repeatability.

Its optional 10X proof pressure and 10K PSI (689 BAR) line rating also facilitates its use within demanding aircraft engine and hydraulic systems. In addition to expanded ranges, a variety of pressure ports, electrical connections, outputs, and wetted part materials are available. Please consult the factory
for details.

Categories: , Tags: , , , , , , , , , , , , , ,

Description

Model 7400 high line aerospace differential pressure transducer from GP:50 with true wet-wet all stainless steel design allows it to effectively measure both corrosive fluid and industrial gas pressures to high degrees of accuracy and repeatability.

Its optional 10X proof pressure and 10K PSI (689 BAR) line rating also facilitates its use within demanding aircraft engine and hydraulic systems. In addition to expanded ranges, a variety of pressure ports, electrical connections, outputs, and wetted part materials are available. Please consult the factory for details.

Additional information

Markets

Pressure Ranges
