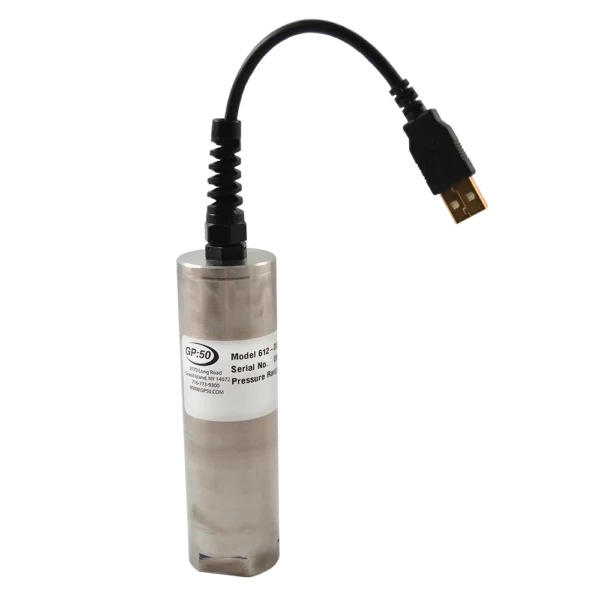

Model 611/612 | USB Output Pressure Transducer

Product Specs
Model: 611/612 (Industrial)
Range: • (Model 611) 0 to 1 thru 0 to 15K PSIG (0-0.069 thru 0-1,034 BAR)
• (Model 612) 0 to 20k thru 0 to 100K PSIG ( 0-1,379 thru 0-6,895 BAR)
Warranty: Product Warranty

USB Drivers & GP:50 Data Logging Software 1/2024

Model 611/612 USB Output Pressure Transducer from GP:50 is a USB output pressure transducer. This model features an intuitive and user-friendly interface that allows for field configuration. For customer convenience, an easy-to-use data acquisition and analysis software is available and fully compatible with any Windows-based terminal program.

Description

Model 611/612 USB Output Pressure Transducer Series from GP:50 is a family of digital USB output pressure transducers with automatic temperature and pressure output recognition. The Series offers an intuitive and user-friendly interface with direct compatibility to high-speed USB 1.0 and 2.0 formats, along with 18-bit resolution and a 4.8 KHz internal measurement rate. Measured pressure values in absolute, gauge, sealed gauge or vacuum formats may be logged real-time onto any PC or mobile device without costly I/O interface board requirements.

The series is available in pressure ranges up to 100K PSI (1,379 BAR), with standard accuracies of ±0.25% FSO and optional improved accuracies of ±0.05% FSO, as well as improved thermal specifications of ±0.25% FSO/100 °F. Their all stainless steel wetted parts and housings allow for years of reliable operation within demanding environments. Available field options include a 1 to 500 Hz adjustable response time, adjustable baud rate, adjustable station numbers, and digital shunt calibration. They are both multi-drop and field configurable, with optional field re-zero functionality.

Model 611/612 Series units also include optional continuous data output streaming and two-point auto recalibration. For customer convenience, all Series units are accompanied by a free, easy-to-use data acquisition and analysis software, Digi-Stand™. The software is fully compatible with any Windows OS computer.

Additional information

Markets

, , , ,

Pressure Ranges

,
