| Product Specs | |
|---|---|
| Model: | 540-IM (Flush Diaphragm) | Range: | 0 to 50 thru 0 to 1000 PSI (3.5 thru 69 BAR) Gauge, Sealed Gauge, Absolute | Warranty: | Product Warranty |

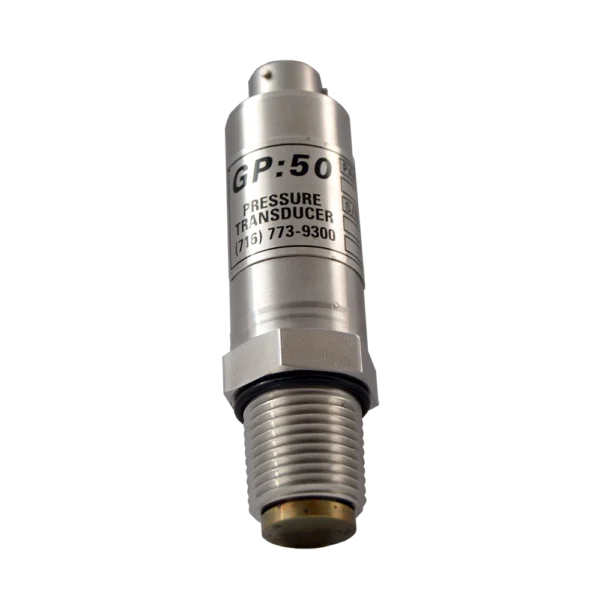

Model 540-IM Flush Mount CANbus Pressure Transmitter series from GP:50 offers CANbus protocol in a flush faced sensor design. GP:50’s CANbus protocol provides high resolution, reduced noise and improved thermal performance. The flush Inconel diaphragm provides maximum corrosion resistance and limits plugging associated with viscous media.
Model 540-IM Flush Mount CANbus Pressure Transmitter series from GP:50 offers CANbus protocol in a flush faced sensor design. GP:50’s CANbus protocol provides high resolution, reduced noise and improved thermal performance. The flush Inconel diaphragm provides maximum corrosion resistance and limits plugging associated with viscous media.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 311-IM (Flush Diaphragm) |
| Range: | 0 to 50 PSI thru 0 to 750 PSI (0 to 3 thru 0 to 50 BAR) *Some Options May Affect Range *PSIG, PSIS, PSIA, PSIV Compound Ranges Available |
| Warranty: | Product Warranty |
Model 311-IM Hazardous Location Flush Mount Pressure Transducer from GP:50 is a flush mounted, hazardous location approved pressure transducer, designed to provide added reliability within slurry or thick process media applications. Their rugged, all-welded flush mounted design facilitates accurate measurements of corrosive or higher viscosity media, in applications where non-flush port sensors are otherwise prone to clogging or damage. No zero offset is caused during sensor installation.
Learn More
| Model: | 741 (Industrial) |
| Range: | 0 to 1 thru 0 to 8,000 PSI (0.069 thru 552 BAR) *Gauge, Sealed Gauge, Absolute |
| Warranty: | Product Warranty |
Model 741 High-Accuracy Digital Pressure Transducer provides RS485 digital data transmission used in serial communication protocols standard for Industrial Control Networks and Data Acquisition Systems. High static accuracy, thermal performance and lack of EMI makes the 741 ideal for the auto and aircraft manufacturing floor.
Learn More
| Model: | 280/380 and 283/383 (Flush Diaphragm) |
| Range: | From 0 to 30" WC thru 0 to 1,000 PSI |
| Certification: | FM, CSA Explosion Proof Option Available |
| Warranty: | Product Warranty |
Models 280/380 and 283/383 Sanitary Tri-Clamp Pressure Transmitter from GP:50 are a family of food and beverage grade tri-clamp process connection pressure transmitters. Their rugged design also meets 3A sanitary standards for dairy applications. Tri-clamp fitting sizes as small as 3/4” are available to provide reduced surface area exposure. The Model 383 is also available with optional high-temperature compensation to +400 °F (+204 °C). Standard models feature all 316L stainless steel construction. Optional Inconel or Hastelloy wetted parts may be substituted for improved corrosion resistance. An optional vented quick disconnect cable provides a barometric reference on lower ranges while providing a NEMA 4X rating.
Learn More
| Model: | 536 |
| Range: | 1 PSID thru 500 PSID (0.1 thru 35 BAR D) |
| Warranty: | Product Warranty |
Model 536 CAN bus from GP:50 is a compact, high-accuracy, digital output differential pressure transducer. This Model measures differential pressure ranges as low as 0-20” WCD (50 mbar) and line pressures up to 1000 PSID (69 BAR) in a compact size with improved thermal performance to meet the demands of the automotive, medical and laboratory test markets. The CAN open protocol allows for multiple devices on a single bus, reducing installation time and cost.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
