| Product Specs | |
|---|---|
| Model: | 411/411XP (Oil & Gas) | Range: | 0-15 PSI thru 0-100K PSI (0-1 thru 6,895 BAR) | Certification: | HART Protocol, CSA & FM Approvals | Warranty: | Product Warranty |

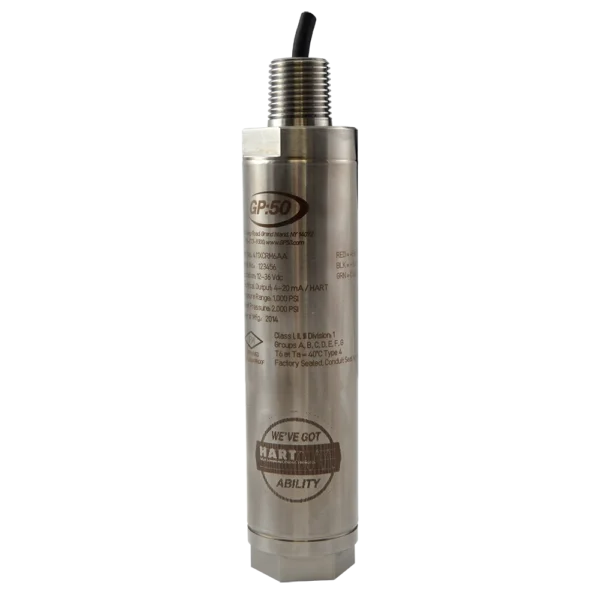

Model 411/411XP Smart Rangeable Hazardous Location Pressure Transmitter from GP:50 incorporates a 4-20 mA output with digital HART protocol. Units are offered with both CSA and FM approval options, as well as a variety of process and electrical connections. Improved accuracy provides for a stable measurement throughout the total compensated temperature range.
Model 411/411XP Smart Rangeable Hazardous Location Pressure Transmitter from GP:50 incorporates a 4-20 mA output with digital HART protocol. Units are offered with both CSA and FM approval options, as well as a variety of process and electrical connections. Improved accuracy provides for a stable measurement throughout the total compensated temperature range.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 211/311 HD-QX & 240/340 HD-QX (Industrial) |
| Range: | Cryogenic Ranges: 50 PSI thru 6K PSIG (3.5 thru 345 BAR) High Temperature Ranges: 150 PSI thru 15K PSIG *Sealed Gauge or Absolute Formats |
| Certification: | ATEX, CSA Approvals |
| Warranty: | Product Warranty |
Model 211/311 HD/QX and 240/340 HD/QX Series from GP:50 offer reliable pressure sensing in cryogenic or high temperature applications.
Remote mounted electronics provide a highlevel 4-20 mA or 0-5 Vdc output with optional CANbus, RS485 Modbus, USB or RS232 digital protocols. The SST, armor jacketed cable provides flexibility in mounting the electronics away from the process temperature. 18”-36” remote flex lengths are available.
| Model: | 243/343 (Industrial) |
| Range: | 0-50 thru 0-10K PSI (3.5 thru 690 BAR) *Gauge, Sealed Gauge, Absolute |
| Warranty: | Product Warranty |
Model 243/343 Dual Pressure and Temperature Transducer Series from GP:50 is an all-stainless steel, dual pressure and temperature transducer with 4-20 mA and 0-5 V output. Its compact design reduces I/O and insertion points where size and weight are considerations. Units are available in a variety of pressure and temperature ranges.
Learn More| Model: | 1001/1002/1003 (Industrial) |
| Range: | 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR) *Gauge, Vacuum, and Absolute Pressure Reference Available |
| Warranty: | Product Warranty |
Model 1001/1002/1003 OEM Industrial Grade Pressure Transmitter from GP:50 is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc, 0 to 10 Vdc or mV/V output, as well as various electrical connection and pressure port options. Typical applications for the Model 1001/1002/1003 include off-road vehicle, HVAC/R, hydraulic and pneumatic control systems, pumps and compressors, and industrial engine pressure monitoring.
Buy Online Learn More| Model: | 240/340-IM (Oil & Gas) |
| Range: | 0-75 thru 0-750 PSI (5 thru 52 BAR) gauge, sealed gauge, absolute |
| Certification: | ATEX & IEC Hazardous Approvals |
| Warranty: | Product Warranty |
Model 240/340-IM Flush Mount Pressure Transmitter Series from GP:50 is a flush face mounted industrial pressure transmitter. It is expressly designed for higher viscosity media, particularly where such media can otherwise clog or damage traditional non-flush port sensor designs. The rugged, all-welded, Inconel design of the 40-IM series allows for greater compatibility with corrosive media. No zero offset is caused during sensor installation.
Buy Online Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
