| Product Specs | |
|---|---|
| Model: | 313L-NI (Submersibles) | Range: | 0-20" WC thru 300 PSI (50 MBAR to 35 BAR) | Warranty: | Product Warranty |

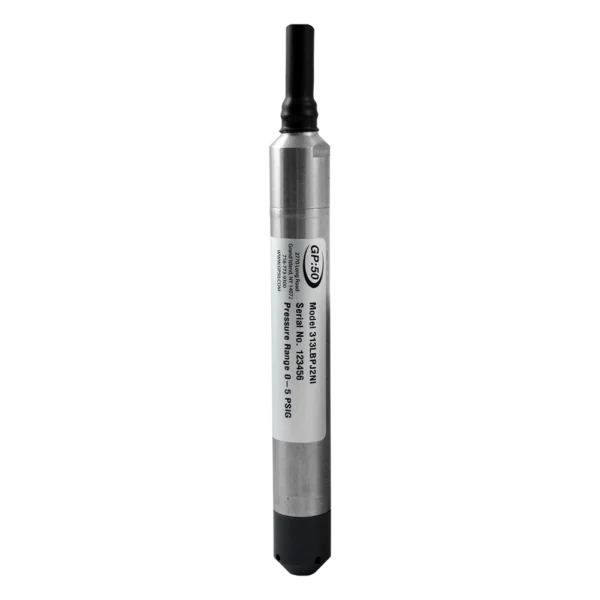

Model 313L-NI Titanium Submersible Level Transmitter utilizes an all-titanium design to provide long term stability and continued performance under the harshest conditions, including corrosive and hazardous chemical applications. The slim design and high media resistance perform exceptionally well in down-hole applications that often have tight space constraints and caustic environmental conditions.
Model 313L-NI Titanium Submersible Level Transmitter utilizes an all-titanium design to provide long term stability and continued performance under the harshest conditions, including corrosive and hazardous chemical applications. The slim design and high media resistance perform exceptionally well in down-hole applications that often have tight space constraints and caustic environmental conditions.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 313F (Submersibles) |
| Range: | 20 INWC to 0-285 PSI |
| Warranty: | Product Warranty |
The Model 313F Flush Submersible Level Transmitter utilizes a 1.06” flush ceramic diaphragm that inhibits grease and biosolid buildup typically found in water treatment level applications. This flush ceramic design saves cost by eliminating sensor clean-out found with many other non flush designs. The corrosion resistant 304SS construction, and an integrated hydrophobic breather vent help provide years of maintenance-free service.
Learn More
| Model: | 313S (Submersibles) See Model 313SL |
| Range: | 0 to 20" WC thru 0 to 300 PSI (50 MBAR to 21 BAR) |
| Warranty: | Product Warranty |
OBSOLETE – Please see Model 313SL
Model 313S Slim Submersible Level Transmitter has all the same features as our popular 313L but with a slim 0.685” (17.4 mm) diameter housing for those applications that have limited installation space. All GP:50 submersible level transmitters are built with a rugged leak-proof stainless steel construction, lightning surge protection and an integrated hydrophobic filter to provide accurate level measurement with years of corrosion free service for all types of level applications.
Learn More
| Model: | 240/340 AI/AN/AF (Industrial) |
| Range: | 0 to 1 PSI thru 0 to 50K PSI *Some Options May Affect Range PSIG, PSIS PSIA, PSIV & Compound Ranges Available |
| Certification: | ATEX & IEC Approvals |
| Warranty: | Product Warranty |
Model 40 Hazardous Locations Pressure Transmitter Series from GP:50 incorporates over 25 years of oil field proven design in a 1” diameter package. The 40 Series provides a rugged solution for hazardous approved areas, especially where space constraints are a concern. Its all-welded stainless steel design will provide years of reliable service in some of the harshest environments.
Learn More
| Model: | 311 I, GI, AI (Industrial) |
| Range: | 0 to 5 thru 0 to 75K PSI (0 to 0.3 thru 0 to 5,171 BAR) *PSIG, PSIS, PSIA, PSIV & Compound Ranges Available |
| Certification: | FM, CSA ATEX, IEC Intrinsically Safe; For Explosion-proof see model 311X/P |
| Warranty: | Product Warranty |
GP:50’s Model 11 series provides a rugged solution in hazardous approved areas. The all welded, stainless steel design provides years of reliable service in some of the harshest applications.
