| Product Specs | |
|---|---|
| Model: | 313AI (Submersibles) | Range: | • 0 to 2 PSI thru 0 to 300 PSI (138 mBAR thru 21 BAR) • 0 to 4 FTWC thru 0 to 700 FTWC (1219 mm thru 213 m WC) |
Certification: | ATEX / IEC, Pending Approvals: CSA, FM, CE | Warranty: | Product Warranty |

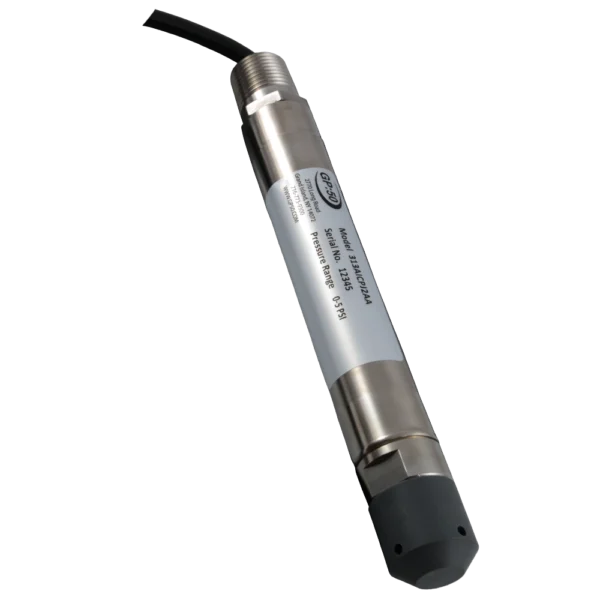

Model 313AI Submersible Level Transmitter for Hazardous Locations from GP:50 is an ATEX intrinsically safe submersible level transmitter, providing high-accuracy level measurements for hazardous locations. The corrosion-resistant 316L stainless steel construction, integrated lightning suppression and hydrophobic breather vent help provide years of maintenance-free service.
Model 313AI Submersible Level Transmitter for Hazardous Locations from GP:50 is an ATEX intrinsically safe submersible level transmitter, providing high-accuracy level measurements for hazardous locations. The corrosion-resistant 316L stainless steel construction, integrated lightning suppression and hydrophobic breather vent help provide years of maintenance-free service.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 313SL (Submersibles) |
| Range: | 0 to 3 PSI thru 285 PSI (200 meters WC) |
| Warranty: | Product Warranty |
Model 313SL Slim Submersible Level Transmitter has all the same features as discontinued model 313S but with a slim 0.622” (15.8 mm) diameter and compact 3.4” housing for those applications that have limited installation space. All GP:50 submersible level transmitters are built with a rugged leak-proof stainless steel construction, lightning surge protection and an integrated hydrophobic filter to provide accurate level measurement with years of corrosion free service for all types of level applications.
*Replaces Model 313S
Learn More
| Model: | 313F (Submersibles) |
| Range: | 20 INWC to 0-285 PSI |
| Warranty: | Product Warranty |
The Model 313F Flush Submersible Level Transmitter utilizes a 1.06” flush ceramic diaphragm that inhibits grease and biosolid buildup typically found in water treatment level applications. This flush ceramic design saves cost by eliminating sensor clean-out found with many other non flush designs. The corrosion resistant 304SS construction, and an integrated hydrophobic breather vent help provide years of maintenance-free service.
Learn More| Model: | 1001/1002/1003 (Industrial) |
| Range: | 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR) *Gauge, Vacuum, and Absolute Pressure Reference Available |
| Warranty: | Product Warranty |
Model 1001/1002/1003 OEM Industrial Grade Pressure Transmitter from GP:50 is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc, 0 to 10 Vdc or mV/V output, as well as various electrical connection and pressure port options. Typical applications for the Model 1001/1002/1003 include off-road vehicle, HVAC/R, hydraulic and pneumatic control systems, pumps and compressors, and industrial engine pressure monitoring.
Buy Online Learn More
| Model: | 1112/1113 (Submersibles) |
| Range: | 0 to 1.4 PSI thru 0 to 285 PSI (100 mBAR thru 20 BAR) 0 to 40" wc thru 0 to 650 ftwc (1 mwc thru 200 mwc) |
| Warranty: | Product Warranty |
Model 1112/1113 Submersible Level Transmitter with Sludge Nose from GP:50 is a family of submersible level transmitters, designed to provide high-accuracy measurements at a competitive price point. They are offered with an all stainless steel sensor with removeable sludge nose which allows for periodic maintenance and cleaning for extended corrosion-free service life.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
