| Product Specs | |
|---|---|
| Model: | 218/318 (Flush Diaphragm) | Range: | 0 to 30" WC thru 0 to 1K PSI (150 mBAR to 59 BAR) | Certification: | Complies with 3A Standard 74-06 | Warranty: | Product Warranty |

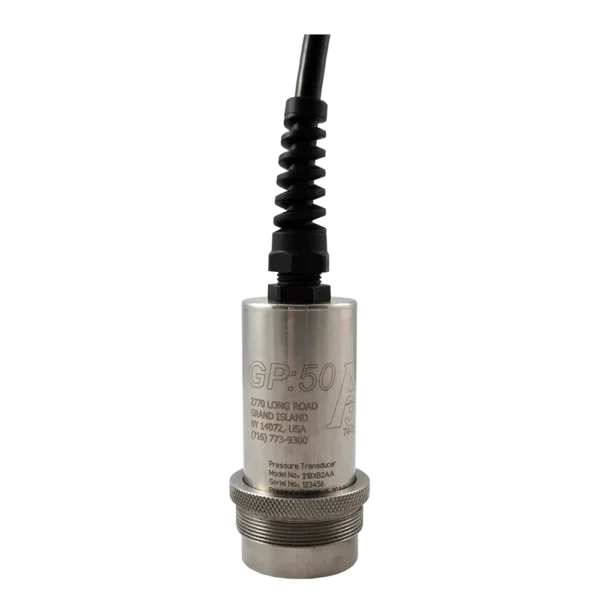

Model 218/318 Sanitary Flush Diaphragm Pressure Transmitter series from GP:50 provides a thread on flush process connection that meets 3A sanitary design standards. The NEMA 4X all welded stainless steel provides protection from water ingress and is designed for the extremes associated with food and beverage processing. An optional high temperature version provides reliable operation in CIP processes to +250 °F (+121 °C).
Model 218/318 Sanitary Flush Diaphragm Pressure Transmitter series from GP:50 provides a thread on flush process connection that meets 3A sanitary design standards. The NEMA 4X all welded stainless steel provides protection from water ingress and is designed for the extremes associated with food and beverage processing. An optional high temperature version provides reliable operation in CIP processes to +250 °F (+121 °C).
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 117 / 217 /317 / 317Z (Flush Diaphragm) |
| Range: | From 0 to 50 thru 0 to 10K PSI (3.4 to 689 BAR) |
| Certification: | FM/ CSA Intrinsically Safe Approval (317Z) |
| Warranty: | Product Warranty |
Model 117/ 217/ 317/ 317Z Industrial Grade Flush Diaphragm Pressure Transmitter series eliminates clogging of the process port in applications where a viscous or sticky media is used. The 316L wetted parts with optional Hastelloy-C make this impervious to corrosive medias and provide standard operating temperatures to +250 °F (+121 °C), with a +350 °F (+177 °C) option.
Learn More
| Model: | 280/380 and 283/383 (Flush Diaphragm) |
| Range: | From 0 to 30" WC thru 0 to 1,000 PSI |
| Certification: | FM, CSA Explosion Proof Option Available |
| Warranty: | Product Warranty |
Models 280/380 and 283/383 Sanitary Tri-Clamp Pressure Transmitter from GP:50 are a family of food and beverage grade tri-clamp process connection pressure transmitters. Their rugged design also meets 3A sanitary standards for dairy applications. Tri-clamp fitting sizes as small as 3/4” are available to provide reduced surface area exposure. The Model 383 is also available with optional high-temperature compensation to +400 °F (+204 °C). Standard models feature all 316L stainless steel construction. Optional Inconel or Hastelloy wetted parts may be substituted for improved corrosion resistance. An optional vented quick disconnect cable provides a barometric reference on lower ranges while providing a NEMA 4X rating.
Learn More| Model: | 170/270/370 (Oil & Gas) |
| Range: | 0 to 1,000 PSI thru 0 to 20K PSI (69 thru 1,379 BAR) |
| Certification: | FM/CSA/ATEX/IEC CE Marked |
| Warranty: | Product Warranty |
Model 170/270/370 WECO® Hammer Union Pressure Transmitter from GP:50 is ruggedly designed and engineered to effectively address demanding shock and vibration and installation challenges within the oilfield environment. Units are directly compatible with WECO® 2”-1502, 2202, 2002 or 602 wing union fittings. They are also available in multiple outputs, ranges, electrical connections, and area approvals to meet specific requirements.
Buy Online Learn More
| Model: | 311-IM (Flush Diaphragm) |
| Range: | 0 to 50 PSI thru 0 to 750 PSI (0 to 3 thru 0 to 50 BAR) *Some Options May Affect Range *PSIG, PSIS, PSIA, PSIV Compound Ranges Available |
| Warranty: | Product Warranty |
Model 311-IM Hazardous Location Flush Mount Pressure Transducer from GP:50 is a flush mounted, hazardous location approved pressure transducer, designed to provide added reliability within slurry or thick process media applications. Their rugged, all-welded flush mounted design facilitates accurate measurements of corrosive or higher viscosity media, in applications where non-flush port sensors are otherwise prone to clogging or damage. No zero offset is caused during sensor installation.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
