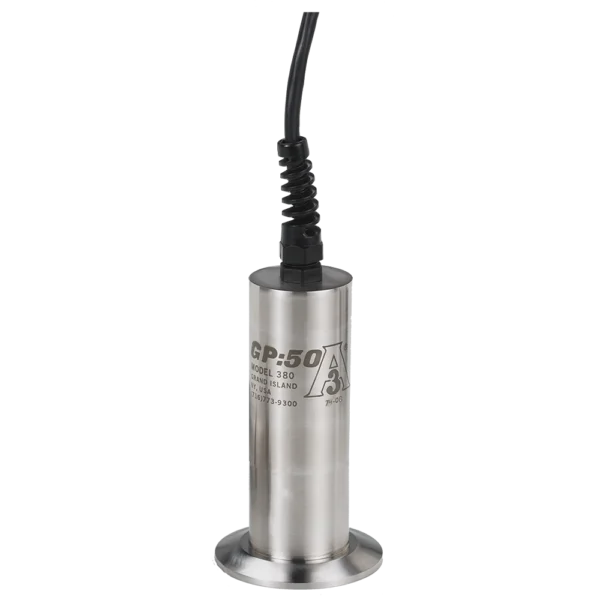

Models 280/380 and 283/383 Sanitary Tri-Clamp Pressure Transmitter

Product Specs
Model: 280/380 and 283/383 (Sanitary)
Range: From 0 to 30" WC thru 0 to 1,000 PSI
Certification: FM, CSA Explosion Proof Option Available
Warranty: Product Warranty

Models 280/380 and 283/383 Sanitary Tri-Clamp Pressure Transmitters from GP:50 are a family of food and beverage grade tri-clamp process connection pressure transmitters. Their rugged design also meets 3A sanitary standards for dairy applications. Tri-clamp fitting sizes as small as 3/4” are available to provide reduced surface area exposure. The Model 383 is also available with optional high-temperature compensation to +400 °F (+204 °C). Standard models feature all 316L stainless steel construction. Optional Inconel or Hastelloy wetted parts may be substituted for improved corrosion resistance. An optional vented quick disconnect cable provides a barometric reference on lower ranges while providing a NEMA 4X rating.

Description

Models 280/380 and 283/383 Sanitary Tri-Clamp Pressure Transmitters from GP:50 are a family of food and beverage grade tri-clamp process connection pressure transmitters. Their rugged design also meets 3A sanitary standards for dairy applications. Tri-clamp fitting sizes as small as 3/4” are available to provide reduced surface area exposure. The Model 383 is also available with optional high-temperature compensation to +400 °F (+204 °C). Standard models feature all 316L stainless steel construction. Optional Inconel or Hastelloy wetted parts may be substituted for improved corrosion resistance. An optional vented quick disconnect cable provides a barometric reference on lower ranges while providing a NEMA 4X rating.

Additional information

Markets

, ,

Pressure Ranges
