| Product Specs | |
|---|---|
| Model: | Model M, V, & C-Spike (Industrial) | Range: | 0 to 100 PSI thru 0 to 15K PSI (0 to 7 BAR thru 0 to 1,034 BAR) | Warranty: | Product Warranty |

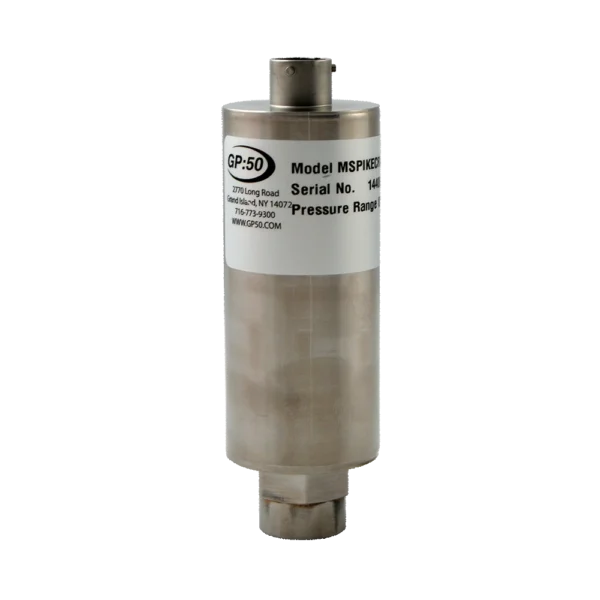

Model M, V, & C-Spike from GP:50 is a family of pressure transducers, specifically designed to withstand high-amplitude, high-frequency spikes that commonly occur in hydraulic pressure sensing applications. A proprietary sensor design provides increased over pressure protection as high as 10x.
Model M, V, & C-Spike Series from GP:50 is a family of pressure transducers, specifically designed to withstand high-amplitude, high-frequency spikes that commonly occur in hydraulic pressure sensing applications. A proprietary sensor design provides increased over pressure protection as high as 10x.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 7400 (AERO) |
| Range: | 0 to 30 thru 0 to 7,500 PSID (2 thru 517 BAR) *Bi-directional or Uni-directional |
| Warranty: | Product Warranty |
Model 7400 high line aerospace differential pressure transducer from GP:50 with true wet-wet all stainless steel design allows it to effectively measure both corrosive fluid and industrial gas pressures to high degrees of accuracy and repeatability.
Its optional 10X proof pressure and 10K PSI (689 BAR) line rating also facilitates its use within demanding aircraft engine and hydraulic systems. In addition to expanded ranges, a variety of pressure ports, electrical connections, outputs, and wetted part materials are available. Please consult the factory
for details.
| Model: | 216/316 (Differential Pressure) |
| Range: | 2.5” WCD thru 200 PSID *Alternate Ranges Available |
| Warranty: | Product Warranty |
Model 216/316 low range high line differential pressure transducers from GP:50 feature a compact design which incorporates the company’s own digital correction circuit technology for high accuracy and extended service life across a variety of applications.
Learn More
| Model: | 1171 (Oil & Gas) |
| Range: | 0 to 15 PSIV, 0 to 2 PSIG, A thru 0 to 100K PSISG, PSIA (1 BAR V thru 6,895 BAR) 5:1 On Ranges 5 PSI (0.3 BAR) |
| Certification: | FM, CSA Intrinsically Safe and Explosion Proof Ratings |
| Warranty: | Product Warranty |
Model 1171 Field Rangeable Process Pressure Transmitter Series from GP:50 is a rugged, hermetically sealed pressure transmitter which features magnetic coupling adjusts for full field calibration with 5:1 turndown ratio. Their compact, corrosion-resistant, all-welded stainless steel construction provides reliable, maintenance-free service life within harsh marine and offshore oil and gas environments.
Learn More
| Model: | 170QX 270QX 370QX (Oil & Gas) |
| Range: | 0 to 1000 PSI thru 0 to 20K PSI (69 thru 1,379 BAR) |
| Certification: | FM/CSA/ATEX/IEC Intrinsic Safety FM/CSA/ATEX/IEC Zone CE Marked |
| Warranty: | Product Warranty |
Model 170QX/270QX/370QX High Pressure High Temperature Pressure Transducer series from GP:50 is designed for High Pressure High Temperature (HPHT) well applications. This series is designed to fit the standard WECO® 2”- 1502 or 2”- 2002/2202 unions and operates at
a continuous process temperature to +350 °F (+177 °C). It offers reliable service in high shock and vibration applications such as cementing, fracturing and drilling mud pressure measurement.
Email Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
