| Product Specs | |
|---|---|

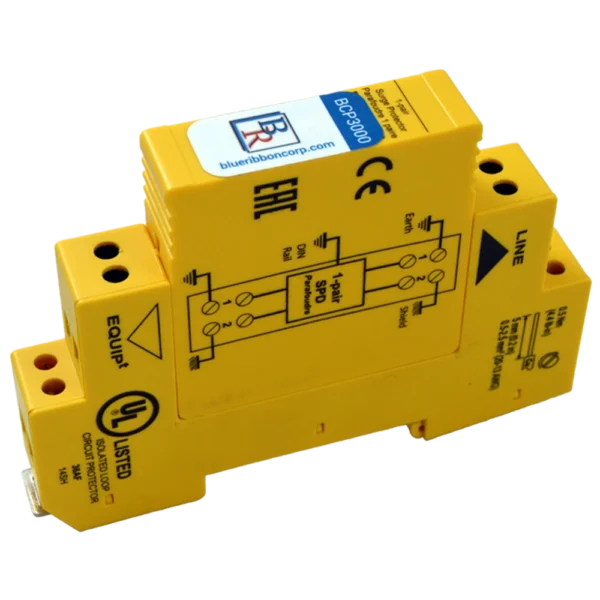

| Model: | BCP3000 | Range: | Temp Range: -50° to +85°C | Warranty: | Product Warranty |
• Lifetime warranty against lightning and voltage surges for
Model 311-M351 (4-20 mA only) • 13mm DIN rail mount chassis
• Replaceable surge module • UL 479B listed • Multiple ground options • High current gas discharge tubes (GDT) • Fast response Surge-Arresting Diode (SAD)
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 117 / 217 /317 / 317Z (Flush Diaphragm) |
| Range: | From 0 to 50 thru 0 to 10K PSI (3.4 to 689 BAR) |
| Certification: | FM/ CSA Intrinsically Safe Approval (317Z) |
| Warranty: | Product Warranty |
Model 117/ 217/ 317/ 317Z Industrial Grade Flush Diaphragm Pressure Transmitter series eliminates clogging of the process port in applications where a viscous or sticky media is used. The 316L wetted parts with optional Hastelloy-C make this impervious to corrosive medias and provide standard operating temperatures to +250 °F (+121 °C), with a +350 °F (+177 °C) option.
Learn More
| Model: | 411-M351 (Submersibles) |
| Range: | 0 to 5 thru 0 to 500 PSI (0 to 10 feet thru 0 to 1,153 feet WC) (0 to 3 thru 0 to 335 meters WC) |
| Certification: | CSA/FM Hazardous Approvals |
| Warranty: | Product Warranty |
Model 411-M351 Field Rangeable Submersible Transmitter from GP:50 is a submersible lift station and sludge level transmitter with field adjustability. It’s all stainless-steel design incorporates a 3-inch diameter clog-resistant sensing diaphragm and corrosion resistant protective baffle plate. These features facilitate high accuracy level measurements, even in heavy sludge conditions. The field adjustment option provides for zero and span adjustments as well as rangeability. This field adjustable option eliminates need to rescale your panel meter when replacing transmitters and allows for fewer units to stock due to rangeability options. This combination of durability and accuracy, coupled with over 25 years of proven field service have helped make the GP:50 Model 411-M351 an industry gold standard for water and wastewater
level monitoring.
| Model: | 1001/1002/1003 (Industrial) |
| Range: | 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR) *Gauge, Vacuum, and Absolute Pressure Reference Available |
| Warranty: | Product Warranty |
Model 1001/1002/1003 OEM Industrial Grade Pressure Transmitter from GP:50 is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc, 0 to 10 Vdc or mV/V output, as well as various electrical connection and pressure port options. Typical applications for the Model 1001/1002/1003 include off-road vehicle, HVAC/R, hydraulic and pneumatic control systems, pumps and compressors, and industrial engine pressure monitoring.
Buy Online Learn More
| Model: | 311-M351 (Submersibles) |
| Range: | 0-5 thru 0-500 PSI (0-10 FT thru 0-1,153 FT WC) (0-3 thru 0-335 meters WC) |
| Certification: | Optional FM/CSA Hazardous Approvals |
| Warranty: | Product Warranty |
Model 311-M351 Submersible Lift Station Sludge Level Transmitter from GP:50 all stainless-steel design incorporates a 3-inch diameter clog-resistant sensing diaphragm and corrosion-resistant protective baffle plate. These features facilitate high-accuracy level measurements, even in heavy sludge conditions. This combination of durability and accuracy, along with over 25 years of proven field service, have helped make the GP:50 Model 311-M351 an industry gold standard for water and wastewater level monitoring.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
