| Product Specs | |
|---|---|
| Model: | 7500-9100 (Oil & Gas) | Range: | 0 to 5K thru 0 to 20K PSI (345 thru 1,380 BAR) | Warranty: | Product Warranty |

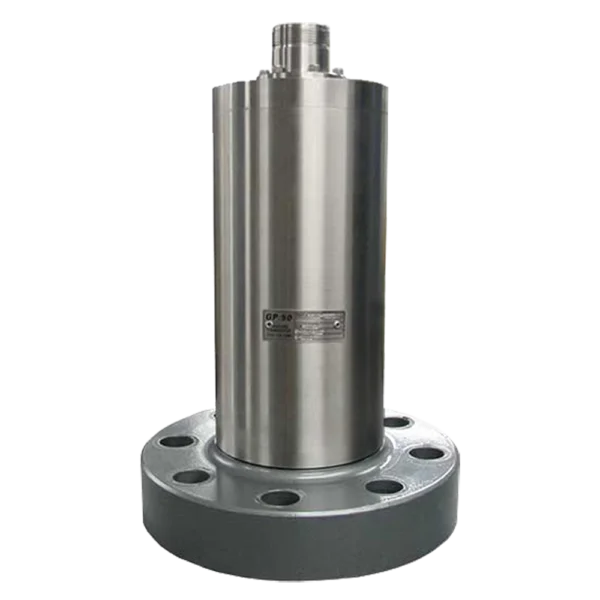

Model 7500-9100 API Flanged Subsea Pressure Transmitter Series from GP:50 is an API flanged, subsea pressure transmitter with over 20 years of field heritage. This Series features pressure ranges up to 20K PSI, seawater rating to 30K ft (9,144 M) and optional HART protocol allowing for field configuration. A removable sensor assembly option allows for field repairs as well as redundant sensors that provide field backup in case of a primary sensor failure.
Model 7500-9100 API Flanged Subsea Pressure Transmitter Series from GP:50 is an API flanged, subsea pressure transmitter with over 20 years of field heritage. This Series features pressure ranges up to 20K PSI, seawater rating to 30K ft (9,144 M) and optional HART protocol allowing for field configuration. A removable sensor assembly option allows for field repairs as well as redundant sensors that provide field backup in case of a primary sensor failure.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 111/211/311X/P & 311N/AN/GN (Oil & Gas) |
| Range: | 0 to 5 PSI thru 0 to 75K PSI (75 MBAR to 1,034 BAR) |
| Certification: | FM, CSA, ATEX & IEC Approvals |
| Warranty: | Product Warranty |
Model 111/211/311X/P and 311N/AN/GN Explosion Proof & Zone 2/Div 2 Pressure Transmitter Series from GP:50 provides a rugged solution in hazardous approved areas. The all welded, stainless steel design provides years of reliable service in some of the harshest applications.
Learn More
| Model: | 540-IM (Oil & Gas) |
| Range: | 0 to 50 thru 0 to 1000 PSI (3.5 thru 69 BAR) Gauge, Sealed Gauge, Absolute |
| Warranty: | Product Warranty |
Model 540-IM Flush Mount CANbus Pressure Transmitter series from GP:50 offers CAN Bus protocol in a flush faced sensor design. GP:50’s CAN Bus protocol provides high resolution, reduced noise and improved thermal performance. The flush Inconel diaphragm provides maximum corrosion resistance and limits plugging associated with viscous media.
| Model: | 170QX 270QX 370QX (Oil & Gas) |
| Range: | 0 to 1000 PSI thru 0 to 20K PSI (69 thru 1,379 BAR) |
| Certification: | FM/CSA/ATEX/IEC Intrinsic Safety FM/CSA/ATEX/IEC Zone CE Marked |
| Warranty: | Product Warranty |
Model 170QX/270QX/370QX High Pressure High Temperature Pressure Transducer series from GP:50 is designed for High Pressure High Temperature (HPHT) well applications. This series is designed to fit the standard WECO® 2”- 1502 or 2”- 2002/2202 unions and operates at
a continuous process temperature to +350 °F (+177 °C). It offers reliable service in high shock and vibration applications such as cementing, fracturing and drilling mud pressure measurement.
| Model: | 240/340-IM (Oil & Gas) |
| Range: | 0-75 thru 0-750 PSI (5 thru 52 BAR) gauge, sealed gauge, absolute |
| Certification: | ATEX & IEC Hazardous Approvals |
| Warranty: | Product Warranty |
Model 240/340-IM Flush Mount Pressure Transmitter Series from GP:50 is a flush face mounted industrial pressure transmitter. It is expressly designed for higher viscosity media, particularly where such media can otherwise clog or damage traditional non-flush port sensor designs. The rugged, all-welded, Inconel design of the 40-IM series allows for greater compatibility with corrosive media. No zero offset is caused during sensor installation.
Buy Online Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
