Model 7500-9000 | Wellhead Subsea Pressure and Temperature Transmitter

Product Specs
Model: 7500-9000 (Oil & Gas)
Range: 0 to 5K thru 0 to 25K PSI (345 thru 1,724 BAR)
Warranty: Product Warranty

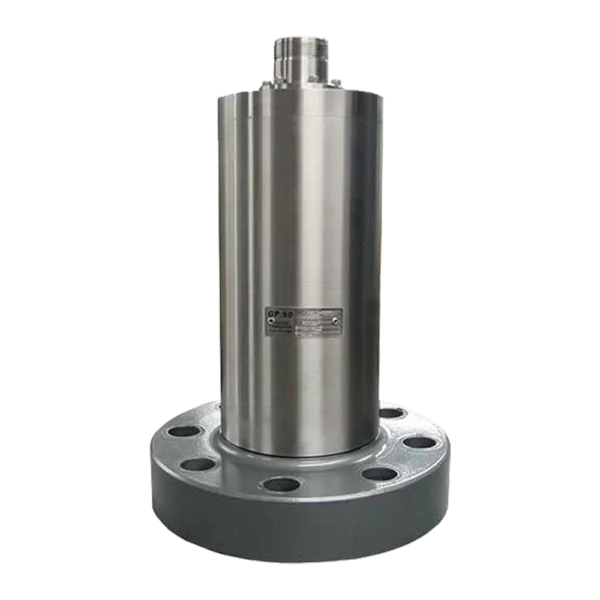

Model 7500-9000 Wellhead Subsea Pressure and Temperature Transmitter Series from GP:50 is a high accuracy pressure and temperature transmitter, offering more than 15 years of field-proven pedigree within subsea wellhead applications. The Series features a robust design with all stainless steel housings and wetted parts, full seawater submersibility to 30K ft (9,144 M) and an API flanged process connection. An optional redundant sensor provides backup pressure and temperature outputs, in the case of prime element failures or cabling issues. Optional HART communication protocols are available for remote measurements.

Description

Model 7500-9000 Wellhead Subsea Pressure and Temperature Transmitter Series from GP:50 is a high accuracy pressure and temperature transmitter, offering more than 15 years of field-proven pedigree within subsea wellhead applications. The Series features a robust design with all stainless steel housings and wetted parts, full seawater submersibility to 30K ft (9,144 M) and an API flanged process connection. An optional redundant sensor provides backup pressure and temperature outputs, in the case of prime element failures or cabling issues. Optional HART communication protocols are available for remote measurements.
