| Product Specs | |
|---|---|
| Model: | 340T/AI/AF/AN (Oil & Gas) | Range: | 0°F to +250°F (-18°C to +121°C) |
Certification: | ATEX/IEC Intrinsically Safe, ATEX/IEC Flameproof | Warranty: | Product Warranty |

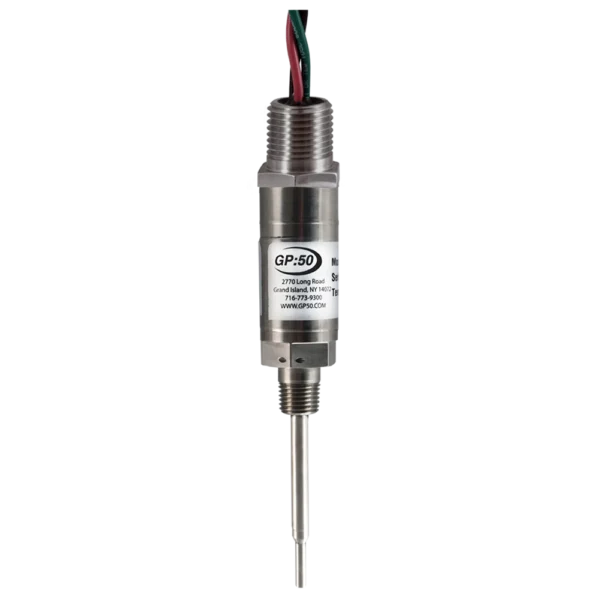

Model 340T/AI/AF/AN Hazardous Location Temperature Transmitter is essential where reliable and accurate process temperatures are required. With a large range of temperature ranges and probe lengths available the Model 340T/AI/AF/AN is adaptable for most temperature applications or processes. The compact size provides easy installation for on-board vehicles used in the oil and gas industry.
Model 340T/AI/AF/AN Hazardous Location Temperature Transmitter is essential where reliable and accurate process temperatures are required. With a large range of temperature ranges and probe lengths available the Model 340T/AI/AF/AN is adaptable for most temperature applications or processes. The compact size provides easy installation for on-board vehicles used in the oil and gas industry.
| Markets |
|---|
| Model: | 7790 (AERO) |
| Range: | 0 to 300 thru 0 to 15K PSIA, PSIG, or PSISG Options (20 thru 1,034 BAR) |
| Warranty: | Product Warranty |
Model 7790 High Temperature Pressure and Temperature transducer series from GP:50 provides pressure and temperature measurement up to +350 °F (+177 °C). The remote electronics provides a high level output of 4-20 mA or 0 to 5 Vdc while reducing the overall footprint by integrating pressure and temperature measurement in one device.
Learn More
| Model: | 540-IM (Oil & Gas) |
| Range: | 0 to 50 thru 0 to 1000 PSI (3.5 thru 69 BAR) Gauge, Sealed Gauge, Absolute |
| Warranty: | Product Warranty |
Model 540-IM Flush Mount CANbus Pressure Transmitter series from GP:50 offers CAN Bus protocol in a flush faced sensor design. GP:50’s CAN Bus protocol provides high resolution, reduced noise and improved thermal performance. The flush Inconel diaphragm provides maximum corrosion resistance and limits plugging associated with viscous media.
| Model: | 7720 (AERO) |
| Range: | Ranges 0 to 300 thru 0 to 6K PSI or PSISG (20 thru 413 BAR) |
| Warranty: | Product Warranty |
Model 7720 cryogenic pressure transducer from GP:50 offers consistent measurement accuracy in temperatures as low as -320 °F (-196 °C). The Series features a lightweight, all stainless steel construction with choice of either 4-20 mA, 0 to 5 Vdc, or 0 to 10 Vdc output; or optional digital protocols. Onboard isolated transducer electronics are remotely mounted via stainless steel armor jacketed flex tubing. The high-reliability of the Model 7720 Series has been successfully field-proven over 25 years and hundreds of critical applications.
Learn More
| Model: | 170QX 270QX 370QX (Oil & Gas) |
| Range: | 0 to 1000 PSI thru 0 to 20K PSI (69 thru 1,379 BAR) |
| Certification: | FM/CSA/ATEX/IEC Intrinsic Safety FM/CSA/ATEX/IEC Zone CE Marked |
| Warranty: | Product Warranty |
Model 170QX/270QX/370QX High Pressure High Temperature Pressure Transducer series from GP:50 is designed for High Pressure High Temperature (HPHT) well applications. This series is designed to fit the standard WECO® 2”- 1502 or 2”- 2002/2202 unions and operates at
a continuous process temperature to +350 °F (+177 °C). It offers reliable service in high shock and vibration applications such as cementing, fracturing and drilling mud pressure measurement.
