| Product Specs | |
|---|---|
| Model: | 313R (Submersibles) | Range: | 0 to 40” WC thru 285 PSI (200 meters WC) | Warranty: | Product Warranty |

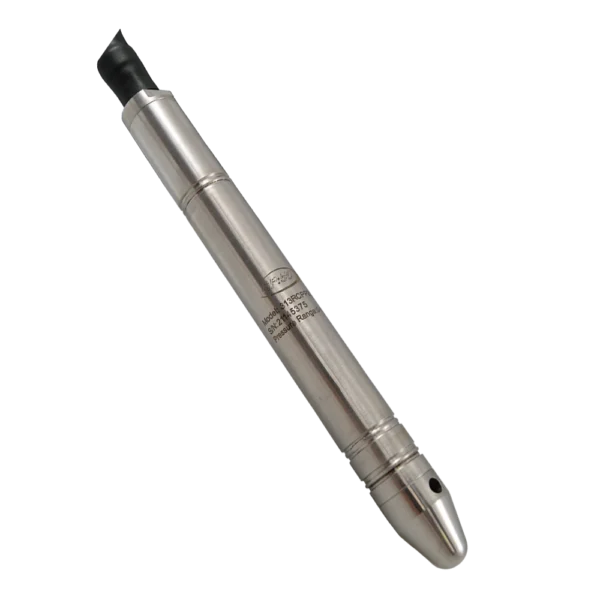

Model 313R Slim Submersible Level Transmitter has all the same features as our popular 313L but with a slim 0.622” (15.8 mm) diameter housing for those applications that have limited installation space. All GP:50 submersible level transmitters are built with a rugged leak-proof stainless steel construction, lightning surge protection and an integrated hydrophobic filter to provide accurate level measurement with years of corrosion free service for all types of level applications.
Model 313R Slim Submersible Level Transmitter has all the same features as our popular 313L but with a slim 0.622” (15.8 mm) diameter housing for those applications that have limited installation space. All GP:50 submersible level transmitters are built with a rugged leak-proof stainless steel construction, lightning surge protection and an integrated hydrophobic filter to provide accurate level measurement with years of corrosion free service for all types of level applications.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 280/380 and 283/383 (Sanitary) |
| Range: | From 0 to 30" WC thru 0 to 1,000 PSI |
| Certification: | FM, CSA Explosion Proof Option Available |
| Warranty: | Product Warranty |
Models 280/380 and 283/383 Sanitary Tri-Clamp Pressure Transmitters from GP:50 are a family of food and beverage grade tri-clamp process connection pressure transmitters. Their rugged design also meets 3A sanitary standards for dairy applications. Tri-clamp fitting sizes as small as 3/4” are available to provide reduced surface area exposure. The Model 383 is also available with optional high-temperature compensation to +400 °F (+204 °C). Standard models feature all 316L stainless steel construction. Optional Inconel or Hastelloy wetted parts may be substituted for improved corrosion resistance. An optional vented quick disconnect cable provides a barometric reference on lower ranges while providing a NEMA 4X rating.
Learn More
| Model: | 7770 (AERO) |
| Range: | SYSTEM PRESSURE: Up to 2000 PSI (138 BAR), Optional 10K PSI (689 BAR) TEMP RANGES: +70°F to +500°F (+20°C to +260°C) |
| Warranty: | Product Warranty |
Model 7770 Extreme High-Temperature Transmitter Series from GP:50 offers consistent measurement accuracy in temperatures up to +500 °F (+260 °C). Their lightweight, all stainless steel construction incorporates on-board isolated electronics, which are remotely mounted via stainless steel armor jacketed flex tubing. The onboard electronics are designed to offer a highlevel 4-20 mA, 0 to 5 Vdc, or 0 to 10 Vdc output. Direct transducer mounting can also provide greater process media measurement accuracy. The highreliability of the Model 7770 Series has been fieldproven over 25 years and hundreds of applications.
Learn More
| Model: | 136/236/336 (Differential Pressure) |
| Range: | 1 PSID thru 500 PSID (0.1 thru 25 BAR D) *Other Ranges Available |
| Warranty: | Product Warranty |
Model 136/236/336 Compact High-Accuracy Differential Pressure Transducer from GP:50 is a family of highly accurate, digitally compensated differential pressure transducers. Model 136/236/336 measures differential pressure ranges as low as 20” WCD and line pressures up to 1000 PSID (69 BAR) in a compact size. Customers may also choose from among multiple accuracy, digital output, process and electrical connections. Please consult the factory for details.
Learn More
| Model: | 340T/240T (Oil & Gas) |
| Range: | 0°F to +250°F (-18°C to +121°C) |
| Warranty: | Product Warranty |
Model 340T/240T Temperature Transmitter is essential where reliable and accurate process temperatures are required. With a large range of temperature ranges and probe lengths available, the Model 340T is adaptable for most temperature applications or processes. The compact size provides easy installation for on-board vehicles used in the oil and gas industry.
