| Product Specs | |
|---|---|

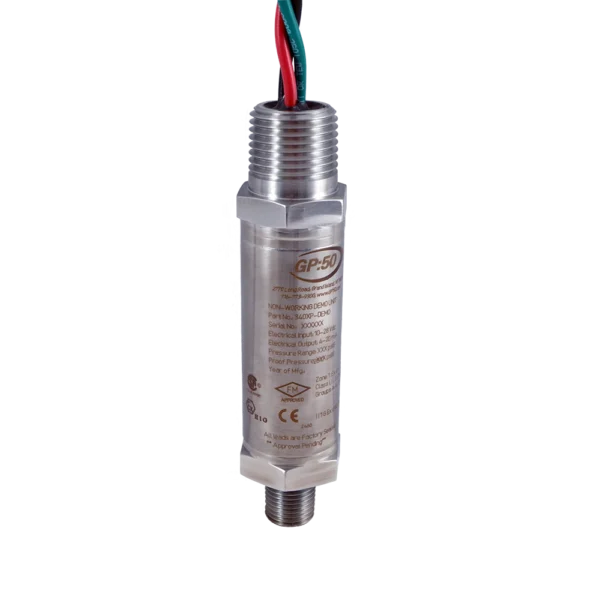

| Model: | 240/340 AI/AN/AF (Industrial) | Range: | 0 to 1 PSI thru 0 to 50K PSI *Some Options May Affect Range PSIG, PSIS PSIA, PSIV & Compound Ranges Available |
Certification: | ATEX & IEC Approvals | Warranty: | Product Warranty |
Model 40 Hazardous Locations Pressure Transmitter Series from GP:50 incorporates over 25 years of oil field proven design in a 1” diameter package. The 40 Series provides a rugged solution for hazardous approved areas, especially where space constraints are a concern. Its all-welded stainless steel design will provide years of reliable service in some of the harshest environments.
Model 40 Hazardous Locations Pressure Transmitter Series from GP:50 incorporates over 25 years of oil field proven design in a 1” diameter package. The 40 Series provides a rugged solution for hazardous approved areas, especially where space constraints are a concern. Its all-welded stainless steel design will provide years of reliable service in some of the harshest environments.
| Markets | Aerospace, Automotive, Industrial Automation, Oil & Gas, Testing |
|---|---|
| Pressure Ranges |
| Model: | 540-IM (Oil & Gas) |
| Range: | 0 to 50 thru 0 to 1000 PSI (3.5 thru 69 BAR) Gauge, Sealed Gauge, Absolute |
| Warranty: | Product Warranty |
Model 540-IM Flush Mount CANbus Pressure Transmitter series from GP:50 offers CAN Bus protocol in a flush faced sensor design. GP:50’s CAN Bus protocol provides high resolution, reduced noise and improved thermal performance. The flush Inconel diaphragm provides maximum corrosion resistance and limits plugging associated with viscous media.
| Model: | 142 / 242 / 342 (Industrial) |
| Range: | 0 to 15 thru 0 to 15K PSI (1 thru 1,034 BAR) |
| Warranty: | Product Warranty |
Model 142/242/342 Vehicle Test Pressure Transducer / Transmitter developed from 20+ years of aerospace experience, the 42 Series was designed with aerospace criteria for industrial applications. The compact all-welded construction offers higher accuracies and a broad thermally compensated range. The 42 Series has all the performance and durability of an aerospace grade unit, but with industrial grade pricing.
Learn More
| Model: | 7400 (AERO) |
| Range: | 0 to 30 thru 0 to 7,500 PSID (2 thru 517 BAR) *Bi-directional or Uni-directional |
| Warranty: | Product Warranty |
Model 7400 high line aerospace differential pressure transducer from GP:50 with true wet-wet all stainless steel design allows it to effectively measure both corrosive fluid and industrial gas pressures to high degrees of accuracy and repeatability.
Its optional 10X proof pressure and 10K PSI (689 BAR) line rating also facilitates its use within demanding aircraft engine and hydraulic systems. In addition to expanded ranges, a variety of pressure ports, electrical connections, outputs, and wetted part materials are available. Please consult the factory
for details.
| Model: | 313S (Submersibles) See Model 313SL |
| Range: | 0 to 20" WC thru 0 to 300 PSI (50 MBAR to 21 BAR) |
| Warranty: | Product Warranty |
OBSOLETE – Please see Model 313SL
Model 313S Slim Submersible Level Transmitter has all the same features as our popular 313L but with a slim 0.685” (17.4 mm) diameter housing for those applications that have limited installation space. All GP:50 submersible level transmitters are built with a rugged leak-proof stainless steel construction, lightning surge protection and an integrated hydrophobic filter to provide accurate level measurement with years of corrosion free service for all types of level applications.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
