| Product Specs | |
|---|---|
| Model: | 170/270/370 (Oil & Gas) | Range: | 0 to 1,000 PSI thru 0 to 20K PSI (69 thru 1,379 BAR) | Certification: | FM/CSA/ATEX/IEC CE Marked | Warranty: | Product Warranty |

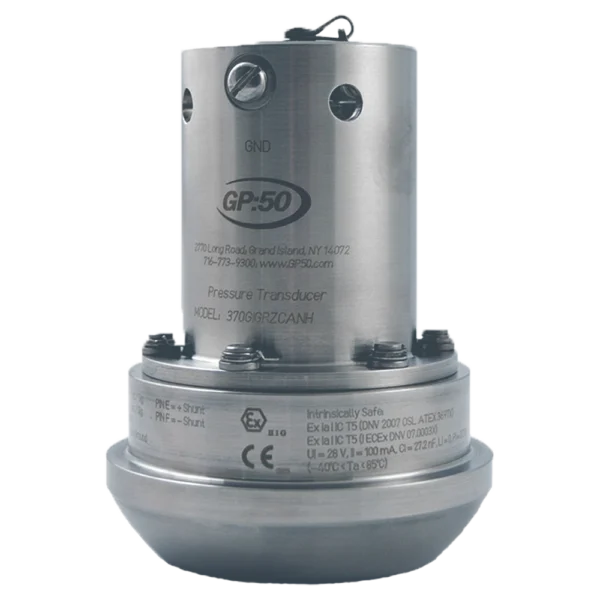

Model 170/270/370 WECO® Hammer Union Pressure Transmitter from GP:50 is ruggedly designed and engineered to effectively address demanding shock and vibration and installation challenges within the oilfield environment. Units are directly compatible with WECO® 2”-1502, 2202, 2002 or 602 wing union fittings. They are also available in multiple outputs, ranges, electrical connections, and area approvals to meet specific requirements.
Model 170/270/370 WECO® Hammer Union Pressure Transmitter from GP:50 is ruggedly designed and engineered to effectively address demanding shock and vibration and installation challenges within the oilfield environment. Units are directly compatible with WECO® 2”-1502, 2202, 2002 or 602 wing union fittings. They are also available in multiple outputs, ranges, electrical connections, and area approvals to meet specific requirements.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 1001/1002/1003 (Industrial) |
| Range: | 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR) *Gauge, Vacuum, and Absolute Pressure Reference Available |
| Warranty: | Product Warranty |
Model 1001/1002/1003 OEM Industrial Grade Pressure Transmitter from GP:50 is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc, 0 to 10 Vdc or mV/V output, as well as various electrical connection and pressure port options. Typical applications for the Model 1001/1002/1003 include off-road vehicle, HVAC/R, hydraulic and pneumatic control systems, pumps and compressors, and industrial engine pressure monitoring.
Buy Online Learn More
| Model: | 1171-LDPE |
| Range: | 0 to 1,000 PSI thru 0 to 90K PSI (69 thru 6,100 BAR) |
| Warranty: | Product Warranty |
Model 1171-LDPE from GP:50 is a high-pressure, high-temperature process transmitter. Its process connections are directly compatible with all G-type
threads or lens seals, as well as high pressure coned connections. A highly robust transmitter design incorporates an integral high-temperature
sensor that further offers minimal thermal shift over a broad temperature range. Its single piece, non-welded construction eliminates weld failure risks.
| Model: | 188/288/388 (Industrial) |
| Range: | 300 PSI to 20K PSI (21 to 1,379 BAR) *Consult Factory For Other Ranges |
| Warranty: | Product Warranty |
Model 188/288/388 Miniature Flush Diaphragm Pressure Transducer from GP:50 is a family of all welded stainless steel miniature flush diaphragm pressure transducers. Their unique design incorporates a specialty flush process connection. This allows the transducer to effectively support higher viscosity fluid pressure measurements without port clogging or plugging. Their compact size allows for ease of installation within space constrained environments.
Learn More
| Model: | 136/236/336 (Differential Pressure) |
| Range: | 1 PSID thru 500 PSID (0.1 thru 25 BAR D) *Other Ranges Available |
| Warranty: | Product Warranty |
Model 136/236/336 Compact High-Accuracy Differential Pressure Transducer from GP:50 is a family of highly accurate, digitally compensated differential pressure transducers. Model 136/236/336 measures differential pressure ranges as low as 20” WCD and line pressures up to 1000 PSID (69 BAR) in a compact size. Customers may also choose from among multiple accuracy, digital output, process and electrical connections. Please consult the factory for details.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
