| Product Specs | |
|---|---|
| Model: | 140/240/340 (Industrial) | Range: | 0 to 1 PSI thru 0 to 30K PSI, *Some Options May Affect Range (PSIG, PSIS, PSIA, PSIV & Compound Ranges Available) | Warranty: | Product Warranty |

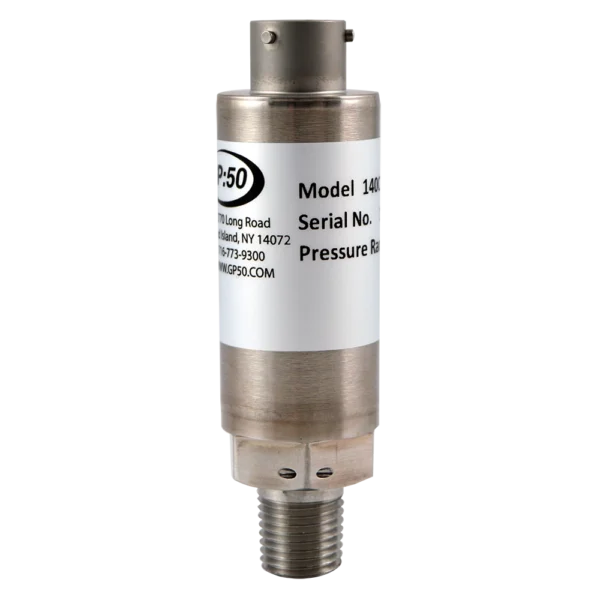

Model 140/240/340 Compact Industrial Pressure Transducer Series provides a compact, rugged design to meet the demands of hydraulic and pneumatic applications found in process automation, test stand, and OEM applications. Its rugged stainless steel design offers high corrosion resistance in pressure ranges from 0-25” WC (69 Mbar) to 30K PSI (2068 bar).
Model 140/240/340 Compact Industrial Pressure Transducer Series provides a compact, rugged design to meet the demands of hydraulic and pneumatic applications found in process automation, test stand, and OEM applications. Its rugged stainless steel design offers high corrosion resistance in pressure ranges from 0-25” WC (69 Mbar) to 30K PSI (2068 bar).
| Markets | Aerospace, Automotive, Industrial Automation, Oil & Gas, Testing |
|---|---|
| Pressure Ranges |
| Model: | 240/340-IM (Oil & Gas) |
| Range: | 0-75 thru 0-750 PSI (5 thru 52 BAR) gauge, sealed gauge, absolute |
| Certification: | ATEX & IEC Hazardous Approvals |
| Warranty: | Product Warranty |
Model 240/340-IM Flush Mount Pressure Transmitter Series from GP:50 is a flush face mounted industrial pressure transmitter. It is expressly designed for higher viscosity media, particularly where such media can otherwise clog or damage traditional non-flush port sensor designs. The rugged, all-welded, Inconel design of the 40-IM series allows for greater compatibility with corrosive media. No zero offset is caused during sensor installation.
Buy Online Learn More
| Model: | 1171 (Oil & Gas) |
| Range: | 0 to 15 PSIV, 0 to 2 PSIG, A thru 0 to 100K PSISG, PSIA (1 BAR V thru 6,895 BAR) 5:1 On Ranges 5 PSI (0.3 BAR) |
| Certification: | FM, CSA Intrinsically Safe and Explosion Proof Ratings |
| Warranty: | Product Warranty |
Model 1171 Field Rangeable Process Pressure Transmitter Series from GP:50 is a rugged, hermetically sealed pressure transmitter which features magnetic coupling adjusts for full field calibration with 5:1 turndown ratio. Their compact, corrosion-resistant, all-welded stainless steel construction provides reliable, maintenance-free service life within harsh marine and offshore oil and gas environments.
Learn More
| Model: | 7790 (AERO) |
| Range: | 0 to 300 thru 0 to 15K PSIA, PSIG, or PSISG Options (20 thru 1,034 BAR) |
| Warranty: | Product Warranty |
Model 7790 High Temperature Pressure and Temperature transducer series from GP:50 provides pressure and temperature measurement up to +350 °F (+177 °C). The remote electronics provides a high level output of 4-20 mA or 0 to 5 Vdc while reducing the overall footprint by integrating pressure and temperature measurement in one device.
Learn More
| Model: | 170QX 270QX 370QX (Oil & Gas) |
| Range: | 0 to 1000 PSI thru 0 to 20K PSI (69 thru 1,379 BAR) |
| Certification: | FM/CSA/ATEX/IEC Intrinsic Safety FM/CSA/ATEX/IEC Zone CE Marked |
| Warranty: | Product Warranty |
Model 170QX/270QX/370QX High Pressure High Temperature Pressure Transducer series from GP:50 is designed for High Pressure High Temperature (HPHT) well applications. This series is designed to fit the standard WECO® 2”- 1502 or 2”- 2002/2202 unions and operates at
a continuous process temperature to +350 °F (+177 °C). It offers reliable service in high shock and vibration applications such as cementing, fracturing and drilling mud pressure measurement.
