| Product Specs | |
|---|---|
| Model: | Model 112/212/312 (Industrial) | Range: | 0 to 20K thru 0 to 100K PSI (1,079 thru 6,895 BAR) | Warranty: | Product Warranty |

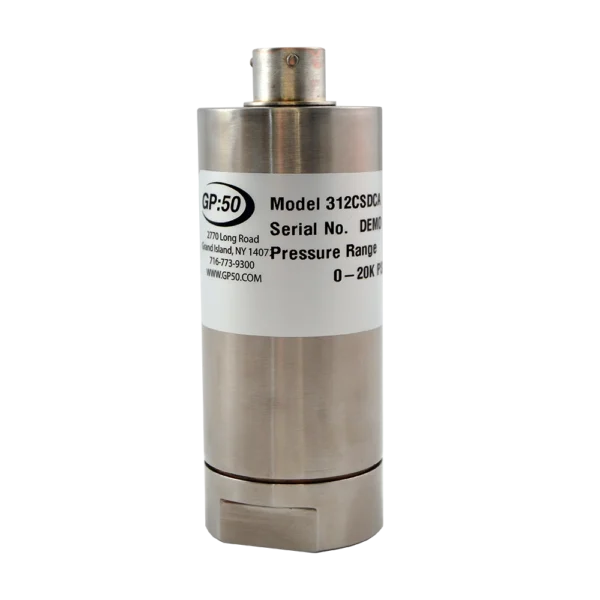

Model 112/212/312 Ultra High Range Pressure Transducer from GP:50 is offered in a single piece sensor design with no welds or seals. All stainless steel construction and industry standard highpressure coned process connections are available in both English and Metric sizes.
Model 112/212/312 Ultra High Range Pressure Transducer from GP:50 is offered in a single piece sensor design with no welds or seals. All stainless steel construction and industry standard highpressure coned process connections are available in both English and Metric sizes.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 241/341 (AERO) |
| Range: | 0-30” WC thru 8K PSI (552 BAR) *Gauge, Vacuum, Absolute, Sealed Gauge (Both Hermetic & Non-Hermetic) |
| Warranty: | Product Warranty |
Model 241/341 high accuracy pressure transducer from GP:50 is our most accurate pressure transducer. Designed specifically for aerospace and automotive test stand applications, it is 5x tighter through temperature than standard industrial transmitters with a 0.20% FSO / 100 °F thermal stability. More than 25 years of field expertise went into the design of our pressure transducer for exceptional reliability. The compact, corrosion-resistant, all-welded stainless steel design of the Model 241/341 offers ease of installation within space constrained environments. Static accuracy is available to ±0.05% FSO, with a total thermal error of 0.25% FSO over the compensated temperature range.
Learn More
| Model: | 7720 (AERO) |
| Range: | Ranges 0 to 300 thru 0 to 6K PSI or PSISG (20 thru 413 BAR) |
| Warranty: | Product Warranty |
Model 7720 cryogenic pressure transducer from GP:50 offers consistent measurement accuracy in temperatures as low as -320 °F (-196 °C). The Series features a lightweight, all stainless steel construction with choice of either 4-20 mA, 0 to 5 Vdc, or 0 to 10 Vdc output; or optional digital protocols. Onboard isolated transducer electronics are remotely mounted via stainless steel armor jacketed flex tubing. The high-reliability of the Model 7720 Series has been successfully field-proven over 25 years and hundreds of critical applications.
Learn More
| Model: | 540-IM (Oil & Gas) |
| Range: | 0 to 50 thru 0 to 1000 PSI (3.5 thru 69 BAR) Gauge, Sealed Gauge, Absolute |
| Warranty: | Product Warranty |
Model 540-IM Flush Mount CANbus Pressure Transmitter series from GP:50 offers CAN Bus protocol in a flush faced sensor design. GP:50’s CAN Bus protocol provides high resolution, reduced noise and improved thermal performance. The flush Inconel diaphragm provides maximum corrosion resistance and limits plugging associated with viscous media.
| Model: | 170QX 270QX 370QX (Oil & Gas) |
| Range: | 0 to 1000 PSI thru 0 to 20K PSI (69 thru 1,379 BAR) |
| Certification: | FM/CSA/ATEX/IEC Intrinsic Safety FM/CSA/ATEX/IEC Zone CE Marked |
| Warranty: | Product Warranty |
Model 170QX/270QX/370QX High Pressure High Temperature Pressure Transducer series from GP:50 is designed for High Pressure High Temperature (HPHT) well applications. This series is designed to fit the standard WECO® 2”- 1502 or 2”- 2002/2202 unions and operates at
a continuous process temperature to +350 °F (+177 °C). It offers reliable service in high shock and vibration applications such as cementing, fracturing and drilling mud pressure measurement.
