Low-Cost OEM Pressure Transducer

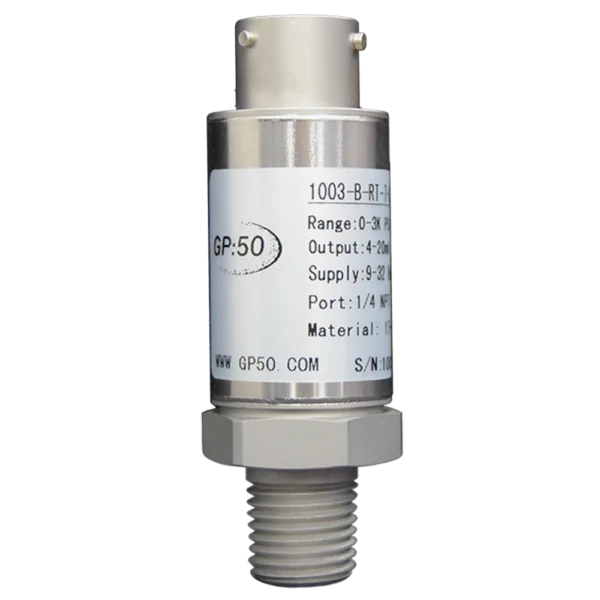

Model 1002/1003-CA | Low-Cost OEM Pressure Transducer

Download Datasheet Request Quote
Product Specs
Model: 1002/1003-CA (Industrial)
Range: 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR), gauge, vacuum, and absolute pressure reference available
Certification: CE
Warranty: Product Warranty

Model 1002/1003-CA Low-Cost OEM Pressure Transducer from GP:50 is a family of lower cost, industrial  grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc or 0 to 10 Vdc output, as well as various electrical connection and pressure port  options. Typical applications for the Model 1002/1003-CA include off-road vehicle, HVAC/R, hydraulic and pneumatic control systems, pumps and compressors, and industrial engine pressure monitoring.

Categories: , , , , , Tags: , , , , , , , , , , , , , , , , , , ,

Description

Model 1002/1003-CA Low-Cost OEM Pressure Transducer from GP:50 is a family of lower cost, industrial  grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc or 0 to 10 Vdc output, as well as various electrical connection and pressure port  options. Typical applications for the Model 1002/1003-CA include off-road vehicle, HVAC/R, hydraulic and pneumatic control systems, pumps and compressors, and industrial engine pressure monitoring.

Additional information

Markets

, , ,

Pressure Ranges
