| Product Specs | |
|---|---|
| Model: | 741 (O&G) | Range: | 0 to 1 thru 0 to 8,000 PSI (0.069 thru 552 BAR) *Gauge, Sealed Gauge, Absolute | Warranty: | Product Warranty |

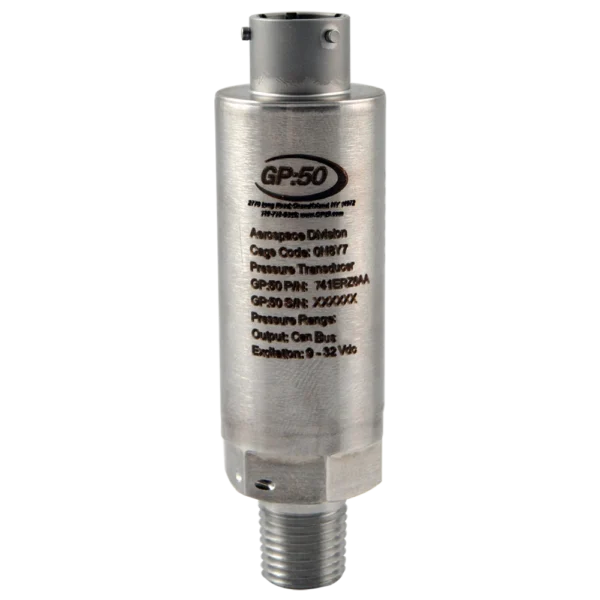

Model 741 High-Accuracy Digital Pressure Transducer from GP:50 provides RS485 digital data transmission used in serial communication protocols standard for Industrial Control Networks and Data acquisition systems. High static accuracy, thermal performance and lack of EMI makes the 741 ideal for the auto and aircraft manufacturing floor.
Model 741 High-Accuracy Digital Pressure Transducer from GP:50 provides RS485 digital data transmission used in serial communication protocols standard for Industrial Control Networks and Data acquisition systems. High static accuracy, thermal performance and lack of EMI makes the 741 ideal for the auto and aircraft manufacturing floor.
| Markets | Digital, Aerospace, Automotive, Industrial Automation, Testing |
|---|---|
| Pressure Ranges |
| Model: | 211/311 HD-QX & 240/340 HD-QX (Industrial) |
| Range: | Cryogenic Ranges: 50 PSI thru 6K PSIG (3.5 thru 345 BAR) High Temperature Ranges: 150 PSI thru 15K PSIG *Sealed Gauge or Absolute Formats |
| Certification: | ATEX, CSA Approvals |
| Warranty: | Product Warranty |
Model 211/311 HD/QX and 240/340 HD/QX Series from GP:50 offer reliable pressure sensing in cryogenic or high temperature applications.
Remote mounted electronics provide a highlevel 4-20 mA or 0-5 Vdc output with optional CANbus, RS485 Modbus, USB or RS232 digital protocols. The SST, armor jacketed cable provides flexibility in mounting the electronics away from the process temperature. 18”-36” remote flex lengths are available.
| Model: | 170QX 270QX 370QX (Oil & Gas) |
| Range: | 0 to 1000 PSI thru 0 to 20K PSI (69 thru 1,379 BAR) |
| Certification: | FM/CSA/ATEX/IEC Intrinsic Safety FM/CSA/ATEX/IEC Zone CE Marked |
| Warranty: | Product Warranty |
Model 170QX/270QX/370QX High Pressure High Temperature Pressure Transducer series from GP:50 is designed for High Pressure High Temperature (HPHT) well applications. This series is designed to fit the standard WECO® 2”- 1502 or 2”- 2002/2202 unions and operates at
a continuous process temperature to +350 °F (+177 °C). It offers reliable service in high shock and vibration applications such as cementing, fracturing and drilling mud pressure measurement.
| Model: | 240/340-IM (Oil & Gas) |
| Range: | 0-75 thru 0-750 PSI (5 thru 52 BAR) gauge, sealed gauge, absolute |
| Certification: | ATEX & IEC Hazardous Approvals |
| Warranty: | Product Warranty |
Model 240/340-IM Flush Mount Pressure Transmitter Series from GP:50 is a flush face mounted industrial pressure transmitter. It is expressly designed for higher viscosity media, particularly where such media can otherwise clog or damage traditional non-flush port sensor designs. The rugged, all-welded, Inconel design of the 40-IM series allows for greater compatibility with corrosive media. No zero offset is caused during sensor installation.
Buy Online Learn More
| Model: | 311-IM (Flush Diaphragm) |
| Range: | 0 to 50 PSI thru 0 to 750 PSI (0 to 3 thru 0 to 50 BAR) *Some Options May Affect Range *PSIG, PSIS, PSIA, PSIV Compound Ranges Available |
| Warranty: | Product Warranty |
Model 311-IM Hazardous Location Flush Mount Pressure Transducer from GP:50 is a flush mounted, hazardous location approved pressure transducer, designed to provide added reliability within slurry or thick process media applications. Their rugged, all-welded flush mounted design facilitates accurate measurements of corrosive or higher viscosity media, in applications where non-flush port sensors are otherwise prone to clogging or damage. No zero offset is caused during sensor installation.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
