| Product Specs | |
|---|---|
| Model: | 536 | Range: | 1 PSID thru 500 PSID (0.1 thru 35 BAR D) | Warranty: | Product Warranty |

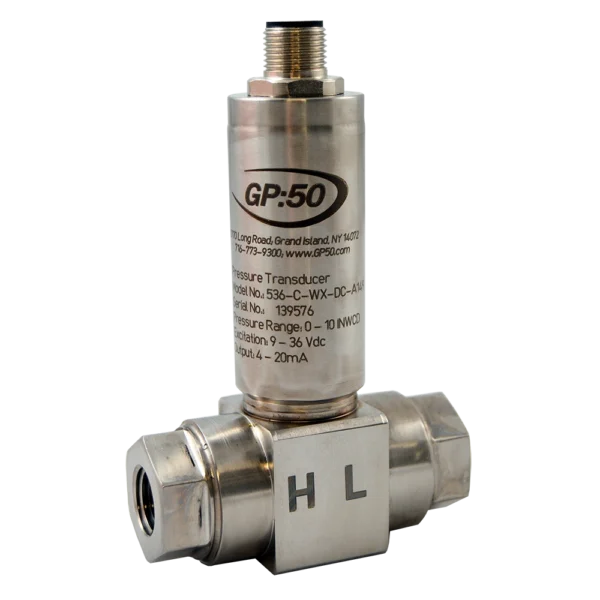

Model 536 CAN Bus from GP:50 is a compact, high-accuracy, digital output differential pressure transducer. This Model measures differential pressure ranges as low as 0-20” WCD (50 mbar) and line pressures up to 1000 PSID (69 BAR) in a compact size with improved thermal performance to meet the demands of the automotive, medical and laboratory test markets. The CAN Open protocol allows for multiple devices on a single bus, reducing installation time and cost.
Model 536 CAN Bus from GP:50 is a compact, high-accuracy, digital output differential pressure transducer. This Model measures differential pressure ranges as low as 0-20” WCD (50 mbar) and line pressures up to 1000 PSID (69 BAR) in a compact size with improved thermal performance to meet the demands of the automotive, medical and laboratory test markets. The CAN Open protocol allows for multiple devices on a single bus, reducing installation time and cost.
| Markets | Aerospace, Automotive, Industrial Automation, Oil & Gas, Testing |
|---|---|
| Pressure Ranges |
| Model: | 216/316 (Differential Pressure) |
| Range: | 2.5” WCD thru 200 PSID *Alternate Ranges Available |
| Warranty: | Product Warranty |
Model 216/316 low range high line differential pressure transducers from GP:50 feature a compact design which incorporates the company’s own digital correction circuit technology for high accuracy and extended service life across a variety of applications.
Learn More
| Model: | 241/341 (AERO) |
| Range: | 0-30” WC thru 8K PSI (552 BAR) *Gauge, Vacuum, Absolute, Sealed Gauge (Both Hermetic & Non-Hermetic) |
| Warranty: | Product Warranty |
Model 241/341 high accuracy pressure transducer from GP:50 is our most accurate pressure transducer. Designed specifically for aerospace and automotive test stand applications, it is 5x tighter through temperature than standard industrial transmitters with a 0.20% FSO / 100 °F thermal stability. More than 25 years of field expertise went into the design of our pressure transducer for exceptional reliability. The compact, corrosion-resistant, all-welded stainless steel design of the Model 241/341 offers ease of installation within space constrained environments. Static accuracy is available to ±0.05% FSO, with a total thermal error of 0.25% FSO over the compensated temperature range.
Learn More
| Model: | 241/341 (Industrial) |
| Range: | 0-30” WC thru 8K PSI (552 BAR) *Gauge, Vacuum, Absolute, Sealed Gauge (Both Hermetic & Non-Hermetic) |
| Warranty: | Product Warranty |
Model 241/341 High Accuracy Pressure Transducer from GP:50 is our most accurate pressure transducer. Designed specifically for aerospace and automotive test stand applications, it is 5x tighter through temperature than standard industrial transmitters with a 0.20% FSO / 100 °F thermal stability. More than 25 years of field expertise went into the design of our pressure transducer for exceptional reliability. The compact, corrosion-resistant, all-welded stainless steel design of the Model 241/341 offers ease of installation within space constrained environments. Static accuracy is available to ±0.05% FSO, with a total thermal error of 0.25% FSO over the compensated temperature range.
Learn More
| Model: | 188/288/388 (Industrial) |
| Range: | 300 PSI to 20K PSI (21 to 1,379 BAR) *Consult Factory For Other Ranges |
| Warranty: | Product Warranty |
Model 188/288/388 Miniature Flush Diaphragm Pressure Transducer from GP:50 is a family of all welded stainless steel miniature flush diaphragm pressure transducers. Their unique design incorporates a specialty flush process connection. This allows the transducer to effectively support higher viscosity fluid pressure measurements without port clogging or plugging. Their compact size allows for ease of installation within space constrained environments.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
