| Product Specs | |
|---|---|
| Model: | 313L (Industrial) | Range: | 0-20” WC thru 300 PSI (50 MBAR to 21 BAR) | Warranty: | Product Warranty |

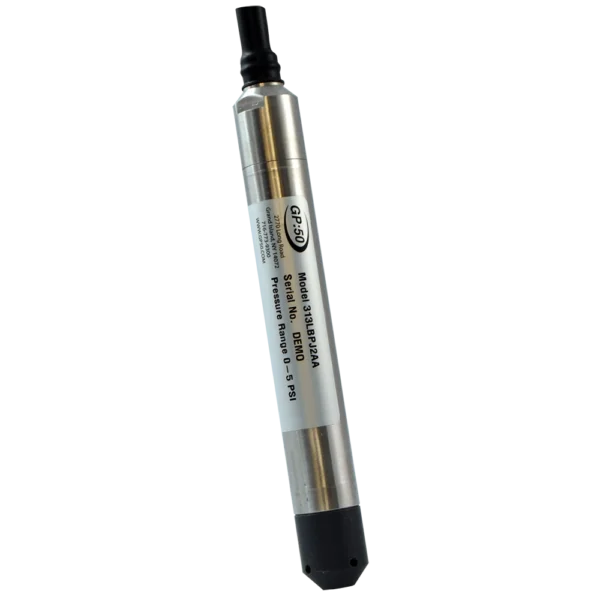

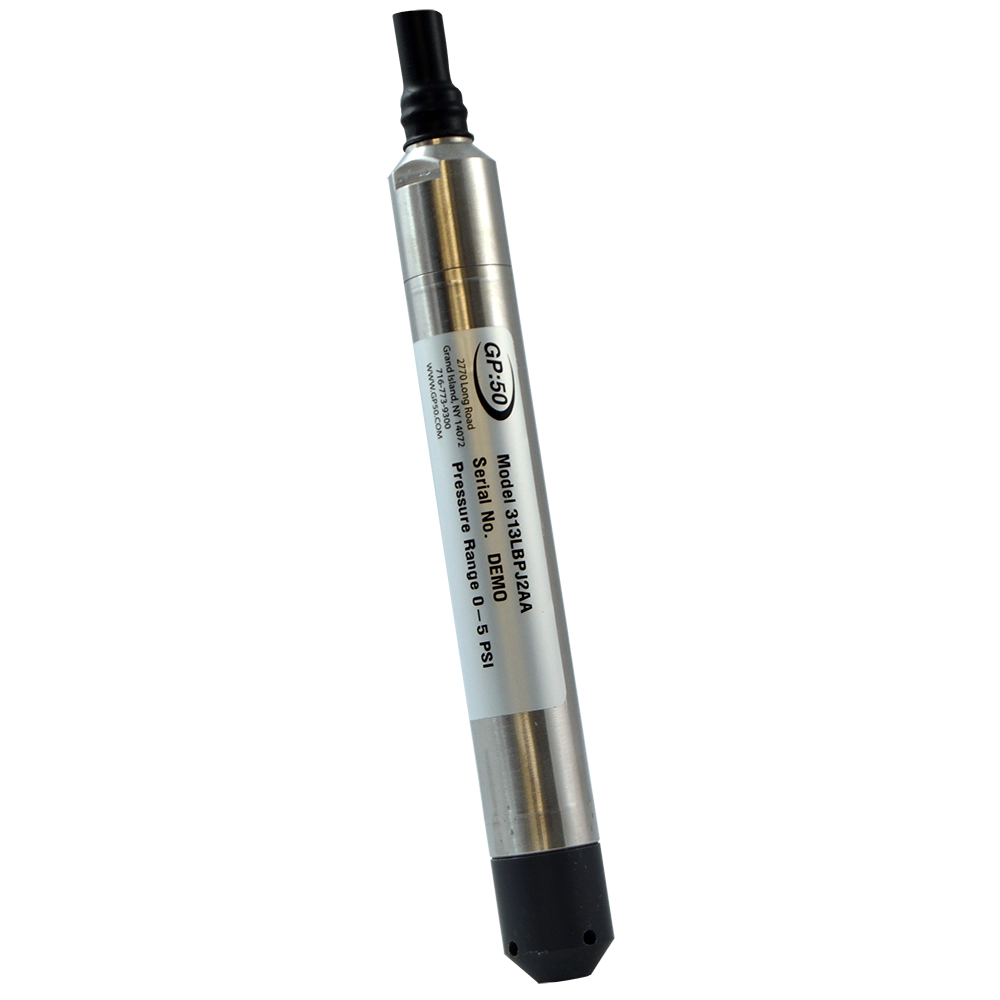

Model 313L Submersible Weir, Well, Pond or Tank Level Transmitter from GP:50 is a line of highly accurate and reliable submersible level transmitters. The corrosion-resistant 316L stainless steel construction, and an integrated hydrophobic breather vent help provide years of maintenance free service.
Model 313L Submersible Weir, Well, Pond or Tank Level Transmitter from GP:50 is a line of highly accurate and reliable submersible level transmitters. The corrosion-resistant 316L stainless steel construction, and an integrated hydrophobic breather vent help provide years of maintenance free service.
| Markets | |
|---|---|
| Pressure Ranges |
| Model: | 1001/1002/1003 (Industrial) |
| Range: | 0 to 15 thru 0 to 10K PSI (1,034 mBAR thru 689 BAR) *Gauge, Vacuum, and Absolute Pressure Reference Available |
| Warranty: | Product Warranty |
Model 1001/1002/1003 OEM Industrial Grade Pressure Transmitter from GP:50 is a family of lower cost, industrial grade OEM pressure transducers, featuring corrosion-resistant, all stainless steel wetted parts and housings. Series transducers are ideal for higher volume pressure monitoring applications, particularly where lower costs are required, yet where the need for precision measurement accuracy remains. Units are available with choice of 4-20 mA, 0 to 5 Vdc, 0 to 10 Vdc or mV/V output, as well as various electrical connection and pressure port options. Typical applications for the Model 1001/1002/1003 include off-road vehicle, HVAC/R, hydraulic and pneumatic control systems, pumps and compressors, and industrial engine pressure monitoring.
Buy Online Learn More
| Model: | 7450 (AERO) |
| Range: | 2.5" WCD thru 100 PSID |
| Warranty: | Product Warranty |
Model 7450 High Line – Low Range Aerospace Differential Pressure Transducer is available with static line pressure to 5,000 PSI. Differential ranges as low as 0-2.5” WCD and a 500 PSI proof pressure are standard on all ranges. A custom subsea rated design allows operation to 23,000 FT SW.
Learn More| Model: | 240/340-IM (Oil & Gas) |
| Range: | 0-75 thru 0-750 PSI (5 thru 52 BAR) gauge, sealed gauge, absolute |
| Certification: | ATEX & IEC Hazardous Approvals |
| Warranty: | Product Warranty |
Model 240/340-IM Flush Mount Pressure Transmitter Series from GP:50 is a flush face mounted industrial pressure transmitter. It is expressly designed for higher viscosity media, particularly where such media can otherwise clog or damage traditional non-flush port sensor designs. The rugged, all-welded, Inconel design of the 40-IM series allows for greater compatibility with corrosive media. No zero offset is caused during sensor installation.
Buy Online Learn More
| Model: | 240/340 AI/AN/AF (Oil & Gas) |
| Range: | 0 to 1 PSI thru 0 to 50K PSI *Some Options May Affect Range PSIG, PSIS PSIA, PSIV & Compound Ranges Available |
| Certification: | ATEX & IEC Approvals |
| Warranty: | Product Warranty |
Model 240/340 AI/AN/AF Hazardous Locations Pressure Transmitter Series from GP:50 incorporates over 25 years of oil field proven design in a 1” diameter package. The 40 Series provides a rugged solution for hazardous approved areas, especially where space constraints are a concern. Its all-welded stainless steel design will provide years of reliable service in some of the harshest environments.
Learn MoreEmail Us or call (877) 774-4751 or (716) 773-9300 (Outside US)
or find your local GP:50 Sales Representative using the links below.
