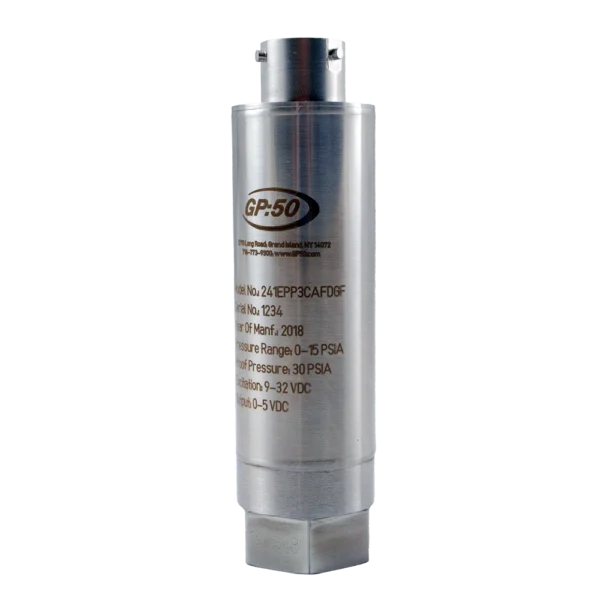

Model 241/341 | High Accuracy Pressure Transducer

Product Specs
Model: 241/341 (Industrial)
Range: 0-30” WC thru 8K PSI (552 BAR) *Gauge, Vacuum, Absolute, Sealed Gauge (Both Hermetic & Non-Hermetic)
Warranty: Product Warranty

Tightest Thermal Stability in its class

Model 241/341 High Accuracy Pressure Transducer from GP:50 is our most accurate pressure transducer. Designed specifically for aerospace and automotive test stand applications, it is 5x tighter through temperature than standard industrial transmitters with a 0.20% FSO / 100 °F thermal stability. More than 25 years of field expertise went into the design of our pressure transducer for exceptional reliability. The compact, corrosion-resistant, all-welded stainless steel design of the Model 241/341 offers ease of installation within space constrained environments. Static accuracy is available to ±0.05% FSO, with a total thermal error of 0.25% FSO over the compensated temperature range.

Description

Model 241/341 High Accuracy Pressure Transducer from GP:50 is our most accurate pressure transducer. Designed specifically for aerospace and automotive test stand applications, it is 5x tighter through temperature than standard industrial transmitters with a 0.20% FSO / 100 °F thermal stability. More than 25 years of field expertise went into the design of our pressure transducer for exceptional reliability. The compact, corrosion-resistant, all-welded stainless steel design of the Model 241/341 offers ease of installation within space constrained environments. Static accuracy is available to ±0.05% FSO, with a total thermal error of 0.25% FSO over the compensated temperature range.

Additional information

Markets

, , ,

Pressure Ranges
